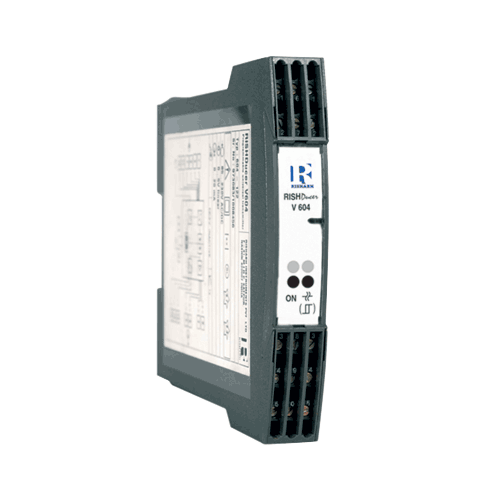

Rishabh RTD (Resistance Temperature Detector) Transducer, Programmable Universal Transmitter Rish Ducer V604

Write a Review

Description

1. Input variable (temperature, variation of resistance, DC signal) and measuring range programmed using PC / Simplifies project planning and engineering (the final measuring range can be determined during commissioning). Short delivery times and low stocking levels
2. Analogue output signal also programmed on the PC (impressed current or superimposed voltage for all ranges between – 20 and + 20 mA DC resp. – 12 and + 15 V DC) / universally applicable. Short delivery times and low stocking levels
3. Electric insulation between measured variable, analogue output signal and power supply / Safe isolation acc. to EN 61 010
4. Wide power supply tolerance / Only two operating voltage ranges between 20 and a maximum of 264 V DC/AC
5. Standard Version as per Germanischer Lloyd
6. Provision for either snapping the transmitter onto top-hat rails or securing it with screws to a wall or panel
7. Housing only 17.5 mm wide (size S17 housing)/ Low space requirement
8. Other programmable parameters: specific measured variable data (e.g. two, three or four-wire connection for resistance thermometers, “internal” or “external” cold junction compensation of thermocouples etc,) transmission mode (special linearised characteristic or characteristic determined by a mathematical relationship, e.g. output signal = f (measured variable)), operating sense (output signal directly or inversely proportional to the measured variable) and open circuit sensor supervision (output signal assumes fixed preset value between – 10 and 110%, supplementary output contact signaling relay) / Highly flexible solutions for measurement problems
