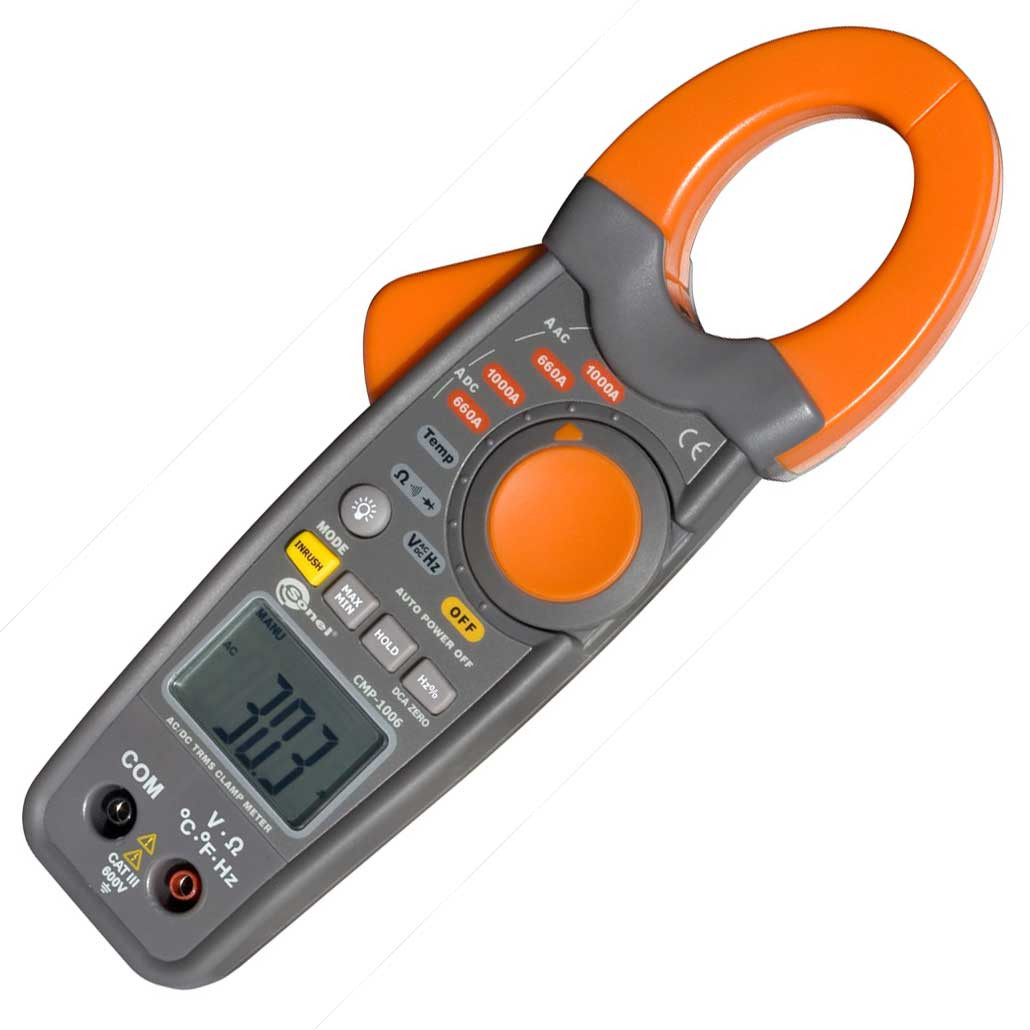

Sonel Digital Clamp Meter Multimeter CMP-1006

Write a Review

For Inquiry

Product Specification

Electric security:

• measurement category: CAT III 600 V acc. to EN 61010 – 1:2004
• protection class acc. to EN 60529: IP40

Other technical data:

• power supply: 9 V battery type 6LR61
• display: 6600 counts, backlit LCD
• continuity test: threshold 40 Ω; test current < 0,5 mA
• diode test: test current of 0,3 mA, typical open circuit voltage < 3 V DC, typical
• low battery indication: BAT displayed
• over range indication: 0L displayed
• sampling rate: 2 times per second
• INRUSH: integration time 100 ms
• temperature sensor: type K thermocouple
• input impedance: 10 MΩ (V DC and V AC)
• AC bandwidth: 50…400 Hz (A AC and V AC)
• auto power OFF: approx. 25 min.
• dimensions: 229 x 80 x 49 mm
• weight: 303 g
• accordance with following standards: EN 61010 – 1:2004, EN 61010 – 2 – 032
• quality standard: ISO 9001

Rated operational conditions:

• internal clamp diameters: d1 = 36 mm/d2 = 52 mm
• operating temperature: +5…+40°C
• storage temperature: -20…+60°C
• operating humidity: max 80% up to 31°C decreasing linearly to 50% at 40°C
• storage humidity: <80%
• operating altitude: max 2000 m
