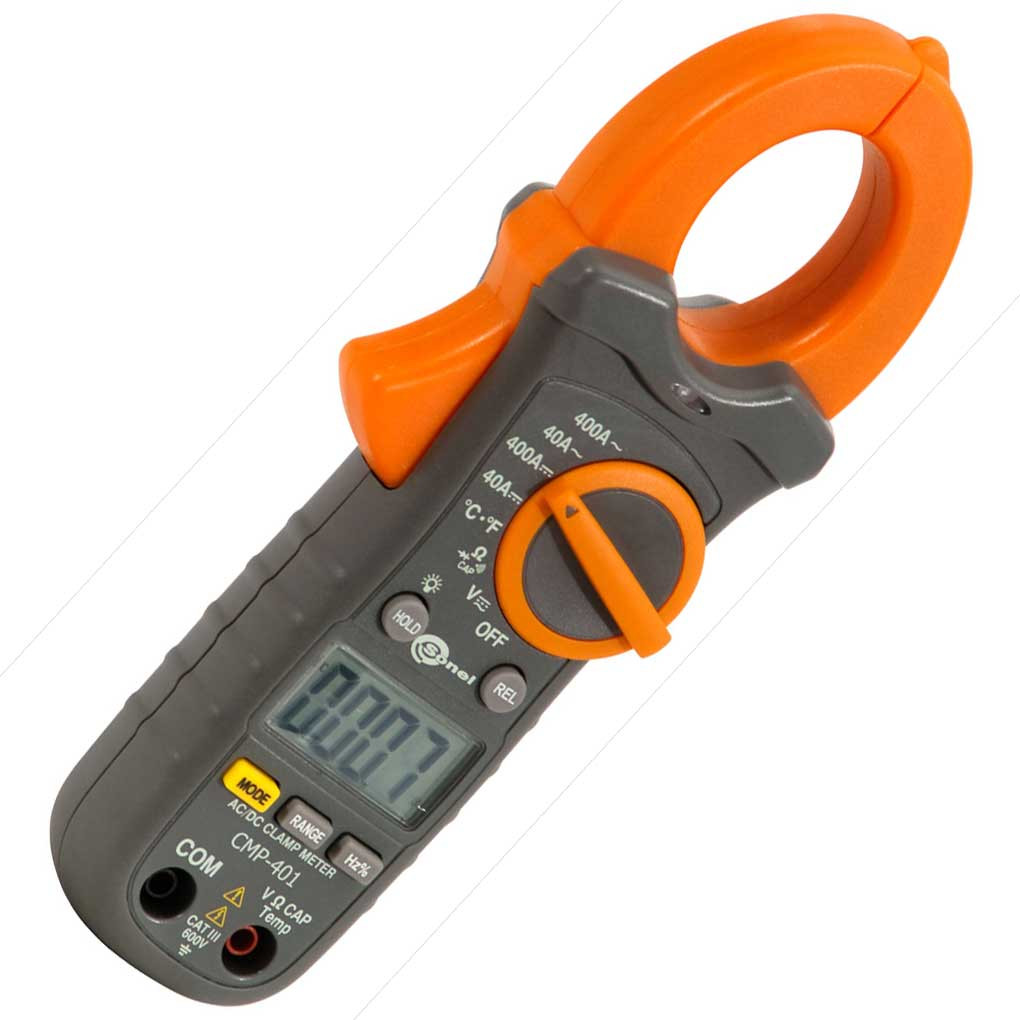

Sonel Digital Clamp Meter Multimeter CMP-401

Write a Review

For Inquiry

Product Specification

Electric security:

• measurement category: CAT III 600 V acc. to EN 61010 – 1:2004
• protection class acc. to EN 60529: IP40

Other technical data:

• power supply: 9 V battery type 6LR61
• display: 4000 counts, backlit LCD
• continuity test: I<0,5 mA, sound signal for R<50 Ω
• diode test: I=0,3 mA, U0 = 1,5 V DC
• over range indication: 0L displayed
• sampling rate: 2 times per second
• input impedance: 10 MΩ (V DC and V AC)
• clamp size: opening 30 mm (1,2”)
• auto power OFF: approx. 30 min.
• dimensions: 197 x 70 x 40 mm
• weight: 183 g
• accordance with following standards: EN 61010 – 1:2004, EN 61010 – 2 – 032
• quality standard: ISO 9001

Rated operational conditions:

• operating temperature: 0…+40°C
• storage temperature: -20…+60°C
• operating humidity: max 80% up to 31°C; decreasing linearly to 50% at 40°C
• operating altitude: max 2000 m
