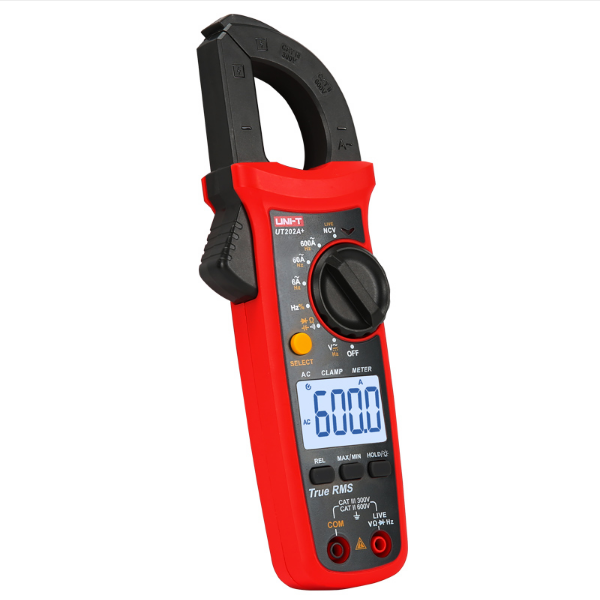

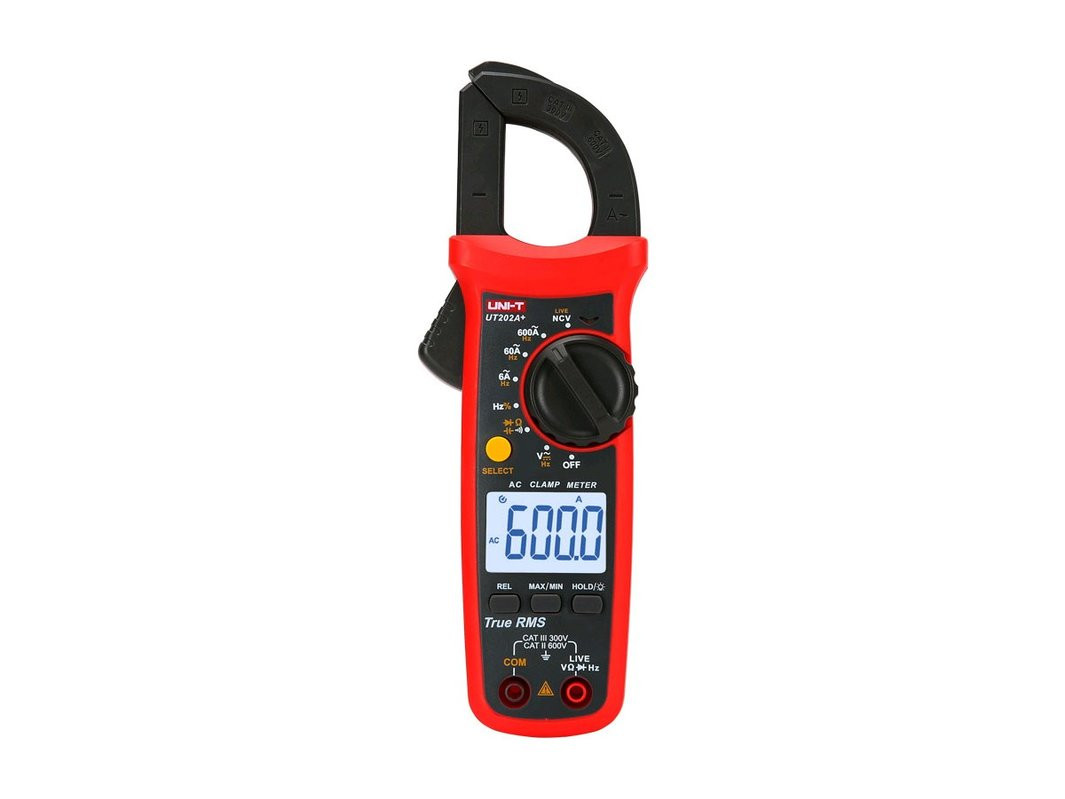

Uni-T AC Clamp Meter UT202A+
Product Not Available
For Inquiry
Product Specification
- Model Number: UT202A+
- Display Type: Digital Only
- Measuring Current Range: 6A/60A/600A
- Measuring Voltage Range: 600mV/6V/60V/600V
- Measuring Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Measuring Capacitance Range: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF
- Measuring Inductance Range: N/A
- Operating Temperature: 0℃~40℃
- Dimensions: 215 x 63 x 36mm
- Weight: 248g
- Product name: Digital Clamp Meter
- Maximum display: 6000
- Jaw opening: 28mm
- AC voltage frequency(Hz): 10Hz~10kHz
- Frequency (Hz): 10Hz~10MHz
- LCD SIZE: 37mm x 25mm
- Product color: Red and grey
- Data hold: yes
- True RMS: yes
- Auto range: yes
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
PT006Warranty
NOEasy Return
Available, T&C ApplyDescription
- Functions:
- AC current;
- AC/DC voltage;
- resistance;
- capacitance;
- frequency;
- duty ratio;
- live/neutral wire detection;
- continuity test;
- diode test.
- True RMS measurement.
- Audio visual NCV detection.
- Large LCD.
- Full-featured false detection protection for up to 600 V energy surges; overvoltage and overcurrent alarm functions.
- The power consumption of the meter is about 1.8 mA. The circuit has an automatic power saving function. The consumption in sleep state is <11 μA, which extends the battery life to 400 hours.
- Low battery indication.
- Automatic power of after 15 of no-operation (function can be turned off).
- Data hold function.
- Max/Min mode.
- REL mode.
