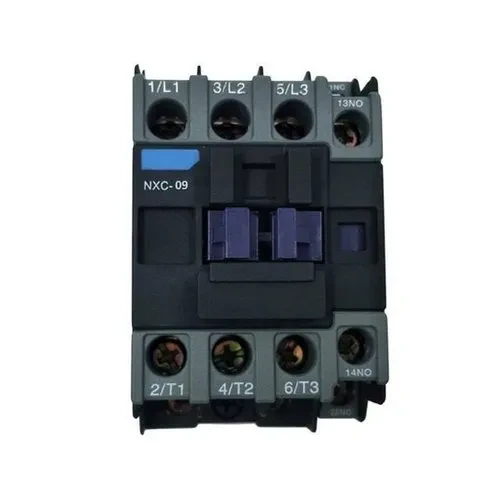

Chint Magnetic Contactor NXC-09

Product Not Available
Out of Stock
For Inquiry
Product Specification
  1. Product: magnetic contactor
  2. Model: NXC-09
  3. Brand: chint
  4. Number of pole: 3
  5. Auxiliary contacts: 1 NO (normally open) + 1 NC (normally close)
  6. Ith Thermal Ampere: 20 Ampere
  7. Operational Ampere: 9 Ampere
  8. Power KW/HP: 4/5
  9. Rated frequency: 50 / 60 Hz
  10. Voltage: 220 v AC (if you want in other coil voltage, write the voltage you want in order notes/additional information)
  11. Mounting: 35mm DIN rial
View More details

Delivery Options Available

  • 2-3 Days Normal Delivery
  • 24 Hours Express Delivery
Sold By
HT002
Warranty
NO
Easy Return
Available, T&C Apply

Description

  1. The magnetic contactors are a form of electrical relay found on most electrically powered motors.
  2. They act as a go-between for direct power sources, and high-load electrical motors in order to homogenize or balance out changes in electrical frequency which may come from a power supply as well as to act as a safeguard.
  3. It should be noted that though they are similar in design, magnetic contactors are not circuit breakers.
  4. They do not sever the connection between appliance, and power source during a short circuit.
  5. They are detachable from a motor so that an operator may work with that motor; disassemble or maintain it, without the possibility of live current still passing through the device.

Function

  1. When electricity flows through the magnetic contactor, it causes the electromagnet to generate a strong magnetic field.
  2. This field pulls the iron core into the coil, and creates an electrical arc.
  3. Electricity passes in through one contact and into the contactors parent device in this manner.
  4. To deactivate, the contactor can be physically pulled from the parent device.
  5. Also, in the absence of electrical current, the spring pushes the core away from the coil, breaking the connection.
