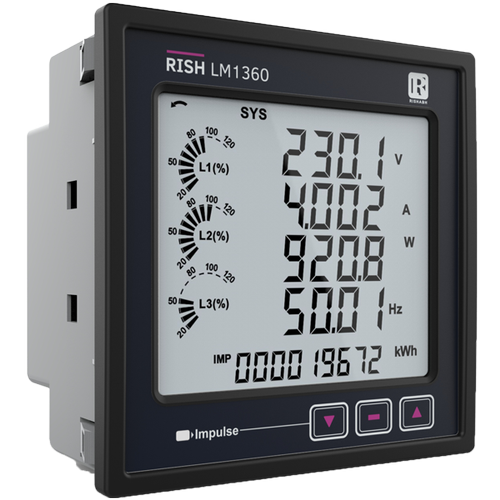

Rishabh Load Manager Multifunction Meter Rish LM 1360
Rs. 20922 Rs. 12640 Save 40 %For Inquiry
Product Specification
- Accuracy class 0.2S and 0.5 as per IEC 62053-22
- THD and Individual Harmonics Measurement upto 31st
- USB Interface with RTC(Real Time Clock)
- Event logging for daily,monthly and yearly analysis
- Load Profile Analysis with 8 Mb In built memory
- Big LCD display with Back-lit
- On-site Fully programmable CT/PT rations
- Compliance to International Safety standards IEC 61010
- Limit (Alarm) or Pulse or RTC relay or Timer Relay Output (optional)
- Direct remote access(Optional)
- Plug & Play CT with RJ12 option - Accuracy Class 1
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
HT015Warranty
YESEasy Return
Available, T&C Apply
Description
RISH LM1350 / LM1360 measures important electrical parameters in 3 phase 4 wire,3 phase 3 wire and1 phase 2 wire Network. It displays many parameters at a glance. It measures electrical parameters like Active / Reactive / Apparent energy , power and all basic parameter. The instrument has two optional outputs. It can be configured as pulse output for energy measurement , limit output , timer function and RTC relay.
Applications:
- Internal Energy billing/monitoring/auditing
- Electrical load monitoring
- Sub-metering
- Genset, TestBenches and Laboratories
