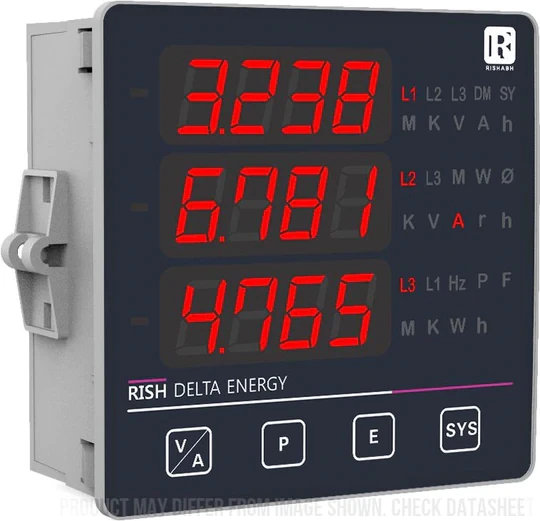

Rishabh Rish Energy Meter Rish Delta E
Rs. 14564 Rs. 8774 Save 40 %For Inquiry
Product Specification
- Fast & Easy Installation on panel with self clicking.
- True RMS measurement.
- Pulse / Limit Switch (optional).
- 3 Line 4 Digits ultra bright LED Display (up to 9999).
- On site Programmable CT/PT Ratios.
- User selectable CT Secondary 1A/5A.
- User selectable PT Secondary from 100 VLL to 500 VLL.
- User selectable 3ph3wire / 3ph4wire / single phase Network.
- Wide auxillary Power Supply which can accept any input between 40V – 300V AC/DC.
- Storage of MIN / MAX values.
- Measurement & Display of RPM, Run hours, On hours, No. of interruption.
- Warranty: 1 Year
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
HT015Warranty
YESEasy Return
Available, T&C Apply
Description
- On site programmable PT/CT ratios:
- It is possible to program primary of external potential
- Transformer (PT), primary of external Current Transformer (CT) on site via front panel keys by entering into Programming mode.
- User selectable CT Secondary 5A/1A
- The secondary of external Current Transformer (CT) can be programmed on site to either 5A or 1A using front panel keys.
- User selectable PT Secondary
- The secondary of external Potential Transformer (PT) can be programmed on site from 100VLL to 500VLL using front panel keys.
- User can set the display in auto scrolling mode or fixed screen mode using front panel keys.
- Onsite selection of Auto scroll / Fixed Screen
- User can set the display in auto scrolling mode or fixed screen mode using front panel keys.
- Low back depth:
- The instrument has very low back depth (behind the panel) of less than 55 mm(Without output option).
- Four function keys:
- Using the four function key, it is possible to go desired parameter screen instantly.
- True RMS measurement
