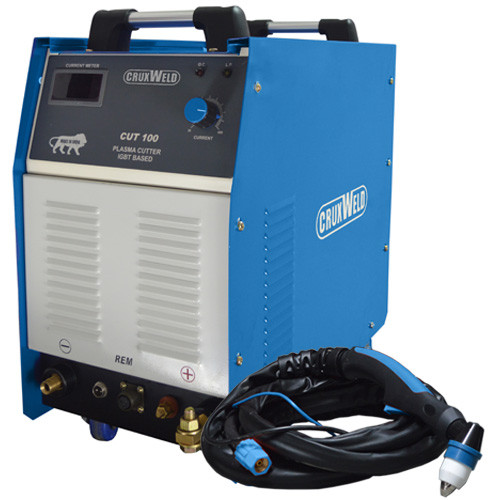

Cruxweld 100Amps Air Plasma Cutting Machine CWP-Cut100IC
Rs. 282500For Inquiry
Product Specification
- Input voltage: AC415±15%
- Phase No: 3
- Frequency: 50/60Hz
- Max input KVA@100% duty cycle: 14.5KVA
- Rated input current: 23Amps
- Open circuit voltage: 290V
- Cutting current range: 20-100Amps
- Cutting current @60% duty cycle: 100Amps
- Efficiency: 85%
- Degree of protection: IP23S
- Insulation Class: H
- Air pressure required: 60-75Psi
- Fine cutting thickness capacity: 25mm
- Severance cutting thickness capacity: 30mm
- Cooling Type: Forced Air
- Dimensions (LxWxH) mm: 550x280x545
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
PT030Warranty
NOEasy Return
Available, T&C ApplyDescription
- Easy starting with pilot arc allows easy cutting of rusty and painted metals
- Cuts virtually any type of metal with ease
- Simple to use torches with inexpensive service parts and consumables
- Arc parameter electronic control for an excellent cutting quality
- Distortion free, burr free, narrow kerf width, clean cut
- Cutting parameters stability within ±20% mains voltage fluctuations for long lasting consumable parts
- Post flow cooling allows the torch to cool down after the cut for longer torch life
- Energy efficient outfit, built in with high efficiency and high power factor power source, saves power consumption and reduce energy bills up to 30%
- Air filter cum regulator assembly provided as a standard accessories to ensure clean cut, compressed air for excellent cut quality
- Air pressure safety switch for 'Fail Safe' cutting Separate selector switch for checking 'Air Pressure'
