Panchakanya Transmission Lifter PA-ME-TJ
Rs. 70000For Inquiry
Product Specification
- Maximum Height: 1768mm
- Minimum Height: 820mm
- 2 Stage Lift Ram travel: 1st=490mm 2nd=510mm
- Lifting Platform Size: 340*240mm
- Forward Tilt: 6°
- Rearward Tilt: 20°
- Base Dimensions: 610 x 740mm
- Nett Weight: 52kg
- Carton: 490 x 310 x 730mm
- Gross Weight: 59kg
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
PT035Warranty
NOEasy Return
Available, T&C ApplyDescription

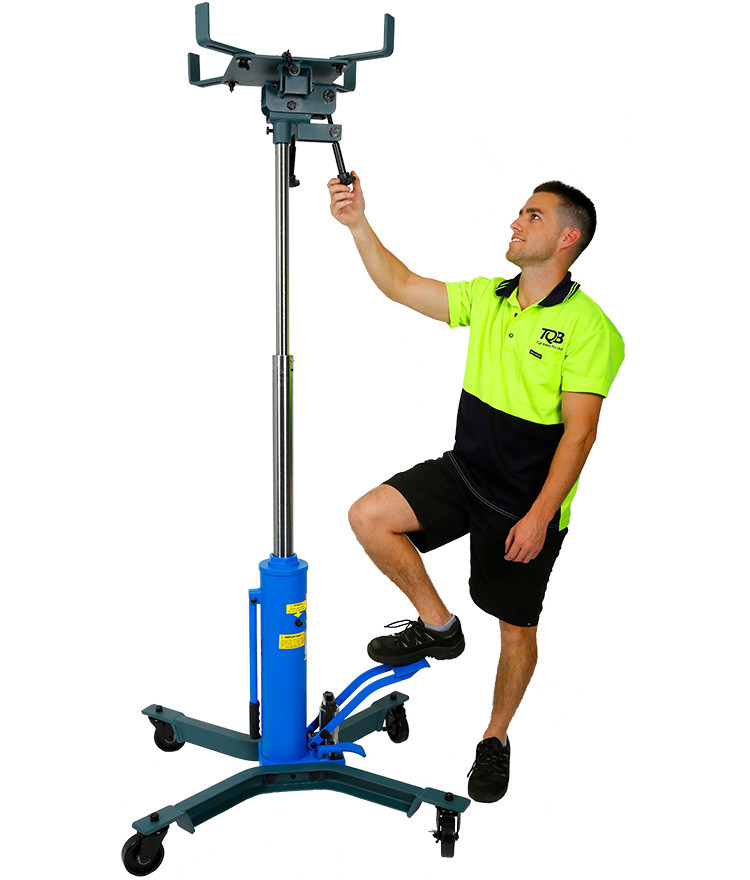

- Designed for lifting & lowering passenger car transmissions
- Using CNC technology, the chassis and frame is constructed of superior-grade steel and built to exacting standards for professional quality and durability

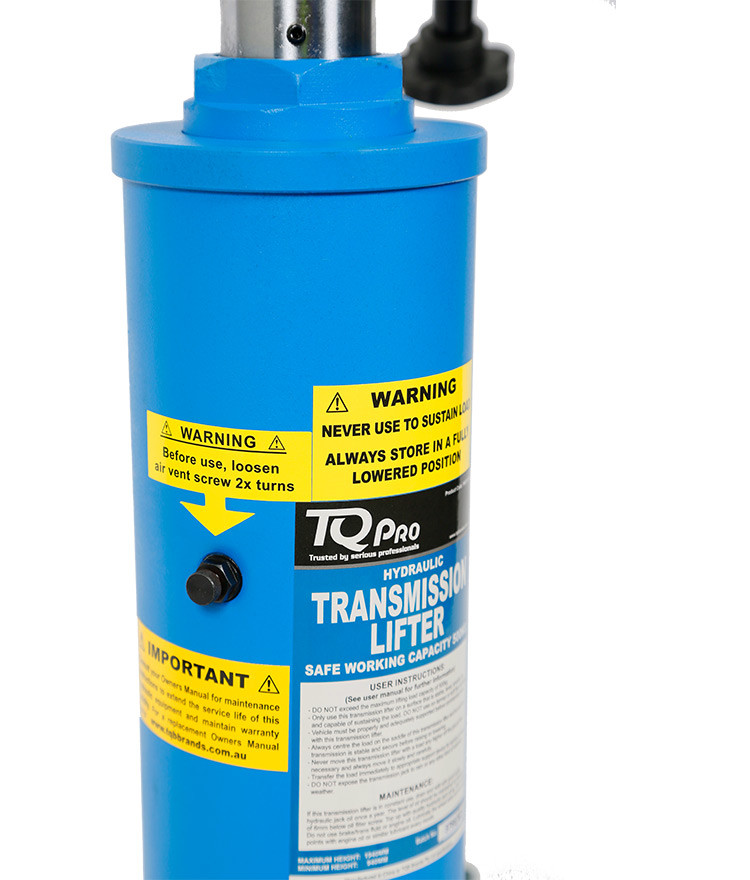

- High quality large diameter hydraulic steel cylinder with precision tolerances and in-ram bleeding and lubricating mechanism

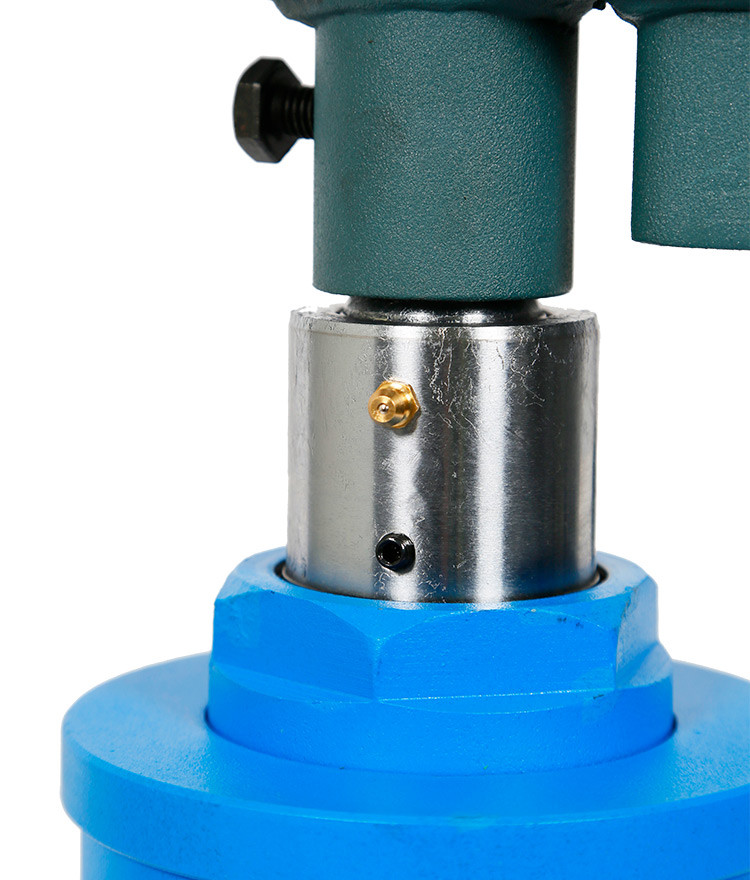

- Piston-ram is treated and polished to minimise wear and extend service life
- Globally sourced premium quality (doubled) O rings with anti-dust ring, reduce wear and substantially increase durability
- Concealed double staged pump core
- Rapid lift without load
- Slow descent with load
- Overload safety valve
- Aviation grade hydraulic fluid
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting and durable finish
- Paint is oil, grease and dirt-resistant for easy cleanup

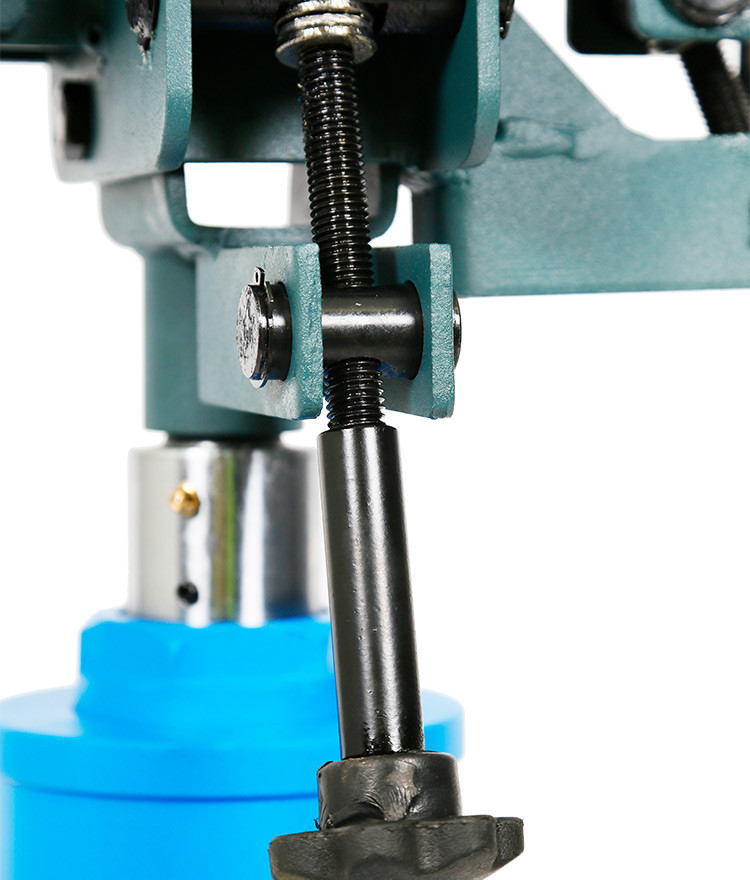

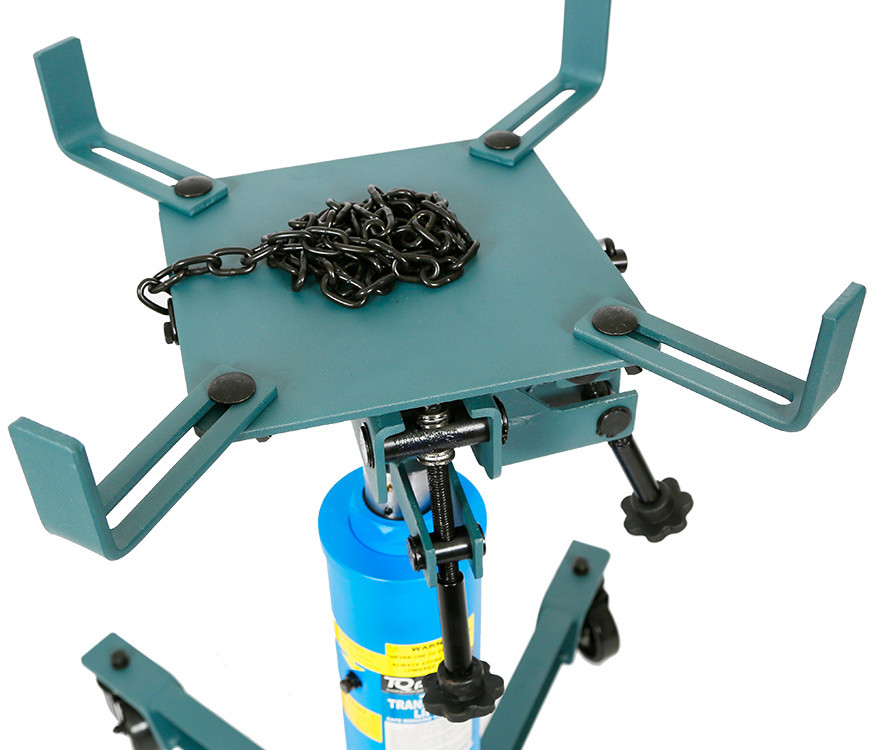

- Oversize lifting platform provides a broad 4 way adjustment / tilt range
- Premium nylon swivel castors
