Phoenix Surge Protection Device (SPD) FLT-BK 350/3+1/FM 2906389
Rs. 59800 Rs. 40000 Save 33 %For Inquiry
Product Specification
- Color: jet black RAL 9005
- Flammability rating according to UL 94: V-0
- CTI value of material: 600
- Insulating material: PA 6.6/PBT
- Material group: I
- Housing material: PBT
- Nominal frequency fN: 50 Hz (60 Hz)
- Connection name: Remote fault indicator contact
- Switching function: Changeover contact
- Operating voltage: 12 V AC ... 250 V AC, 125 V DC (200 mA DC)
- Operating current: 10 mA AC ... 1 A AC, 1 A AC (30 V DC)
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
HT015Warranty
YESEasy Return
Available, T&C Apply
Description
- Type 1+2 combined lightning current and surge arrester

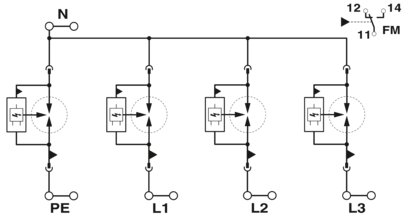

- Pluggable lighting current arrester, in acc. with type 1/class I/B for 3-phase power supply networks with combined PE and N (L1, L2, L3, PE, N).
- Operating Voltage: 12V AC ... 250V AC and 125V DC (200mA DC)
- Operating Current: 10mA AC ... 1A AC and 1A AC (30V DC)
