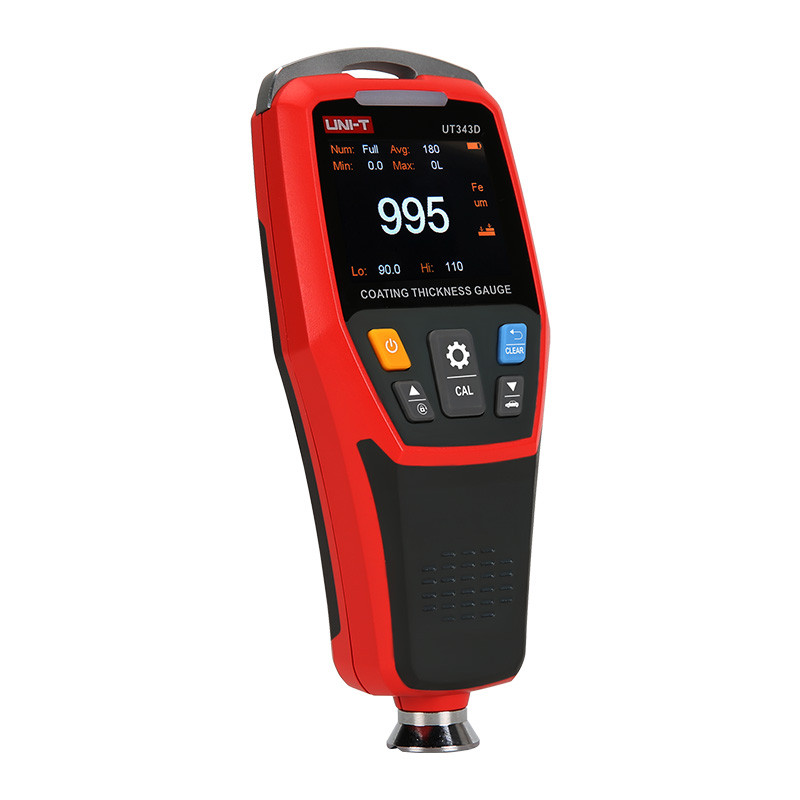

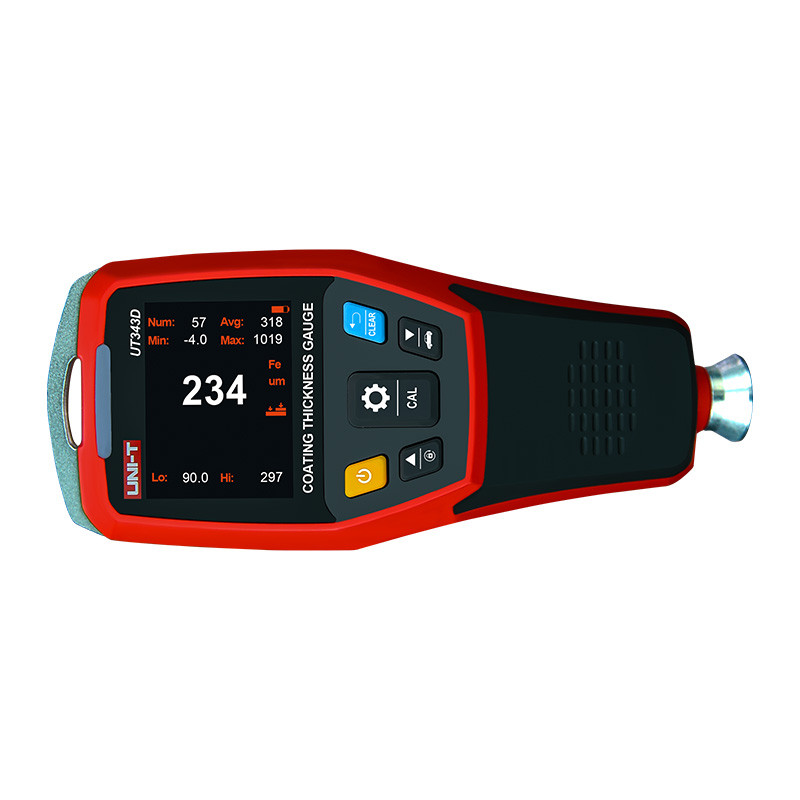

Uni-T Thickness Gauge Meter UT343D
Product Not Available
For Inquiry
Product Specification
- Metal type: ferrous/non-ferrous
- Measurement method: single
- Measuring range: 0 μm - 1250 μm
- Resolution: 0.1 μm (0~99.9 μm); 1 μm (100~1250 μm)
- Accuracy: ±(3%H+1) μm
- Minimum concave radius of curvature: 50 mm
- Minimum substrate thickness: 0.5 mm
- Display: 2-inch TFT LCD (320 × 240), 48 mm × 36 mm
- Power Supply: AA alkaline battery (2 pcs.)
- Dimensions: 153.5 mm × 64.5 mm × 41 mm
- Weight: 175 g
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
PT006Warranty
NOEasy Return
Available, T&C ApplyDescription
- UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials.
- This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.
- UT343 display is auto rotatable.
- This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.
