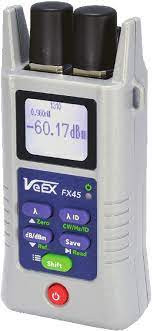

VeEX +10dBm -65dBm OPTICAL POWER METER, STANDARD OPM FX45
Rs. 57000For Inquiry
Product Specification
Optical Power Meter (OPM)
- Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625,
- 1650 nm
- Level measurement range:
-PM1 version:
-65 to +10 dBm
-PM2 version:
-50 to +25 dBm
- Accuracy: +0.2 dB or 5%
- Wave ID detection (compatible VeEX source): 850, 1300, 1310, 1490, 1550, 1625, & 1650 nm
Optical Light Source (OLS)
- Wavelengths: 1310/1490 nm or 1310/1550 nm
- Test Tone Generation: 270, 1 KHz, 2 KHz
- Stability: ± 0.03 dB for insertion loss measurements
General
- Optional OLTS for bi-directional loss measurement (requires ORL option)
- Optional ORL meter for return loss measurements (requires APC Interface)
- Communication port: micro USB
- Connector or Adaptor types: FC/SC/ST/LC, Universal 1.25, Universal 2.5 mm
- Battery: AA alkaline or rechargeable NiMH with 5V micro-USB power adapter
- Battery operating time: approximately 80 hours (without backlight)
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
HT015Warranty
NOEasy Return
Available, T&C ApplyDescription
- Singlemode and Multimode testing
- PON, Telecom, CATV and LAN/WAN applications
- Dual wavelength laser source and power meter
- OPM, OLS, ORL, OLTS configurations
- High accuracy and wide dynamic range
- Save OPM measurements (> 1000 single results) with
- timestamp
- Transfer stored results to a PC via USB for report
- generation, printing and Fiberizer Cloud upload
- Reference power level setup and recall
- Frequency detection for fiber identification
- Wave ID automatically detects incoming wavelength from
- compatible VeEX light source
- ORL and bidirectional loss testing with calibrated power
- meter coupled internally to fiber on light source port
- Splash resistant keypad and chassis design
- High contrast display - Visible outdoors and backlight for
- indoor or low light conditions
- Alkaline or Rechargeable batteries with Auto power off
- Field interchangeable OPM adapters support multiple
- connector types and allow easy access for cleaning
