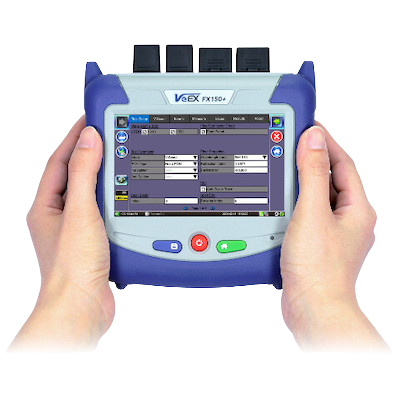

VeEX 1310/1550nm MINI HANDHELD OTDR TEST SET FX150
Rs. 356000For Inquiry
Product Specification
- Supports up to 4 wavelengths including Quad MM/SM
- MM: 850, 1300 nm
- SM: 1310, 1490, 1550, 1625 and 1650 nm
- Dynamic range up to 45 dB
- Testing long Point-Point fiber links up to 180 km (110 miles)
- Testing single or cascaded PON up to 1:128 splitter ratios
- Optimized dead zones (DZ) for FTTx/PON applications
- Event 0.8 m, Attenuation 3.5 m typical
- PON ≤16.5m (13 dB loss, 100ns PW, non-reflective splitter)
- Filtered OTDR port for in-service testing at 1625 or 1650 nm
- 12 fiber ribbon testing using optional OPX-MPO12 switch
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
HT015Warranty
NOEasy Return
Available, T&C ApplyDescription
- Robust, handheld design for demanding field testing
- High resolution, 5” TFT color touch-screen suitable for both indoor and outdoor use
- Fast boot-up and measurement critical for fiber troubleshooting and restoration
- Intuitive display, simple function keys and touch-screen for fast navigation and easy operation
- Internal data storage with SD card
- Micro-USB OTG interface for flash drives, fiber inspection probe connection and test data transfer
- Rechargeable Lithium Polymer battery with capacity indicator, low voltage alarm and Auto-off function
- Continuous operation of > 9 hours without having to recharge batteries
- Built-in WiFi option to perform software upgrades and for uploading test data via wireless Internet connection
- Built-in Bluetooth option for pairing applications with Mobile Smartphones and Tablet PCs
