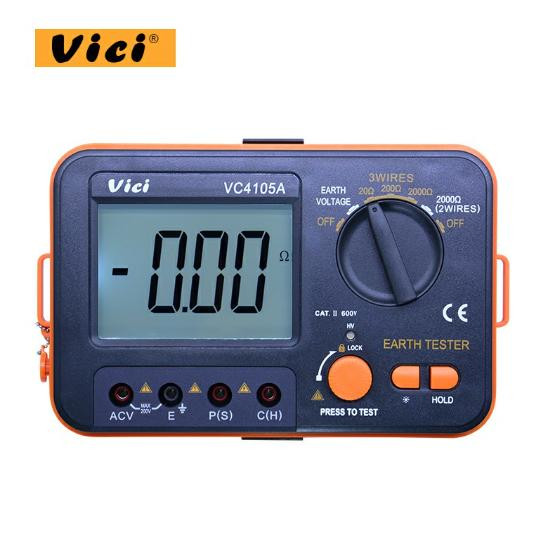

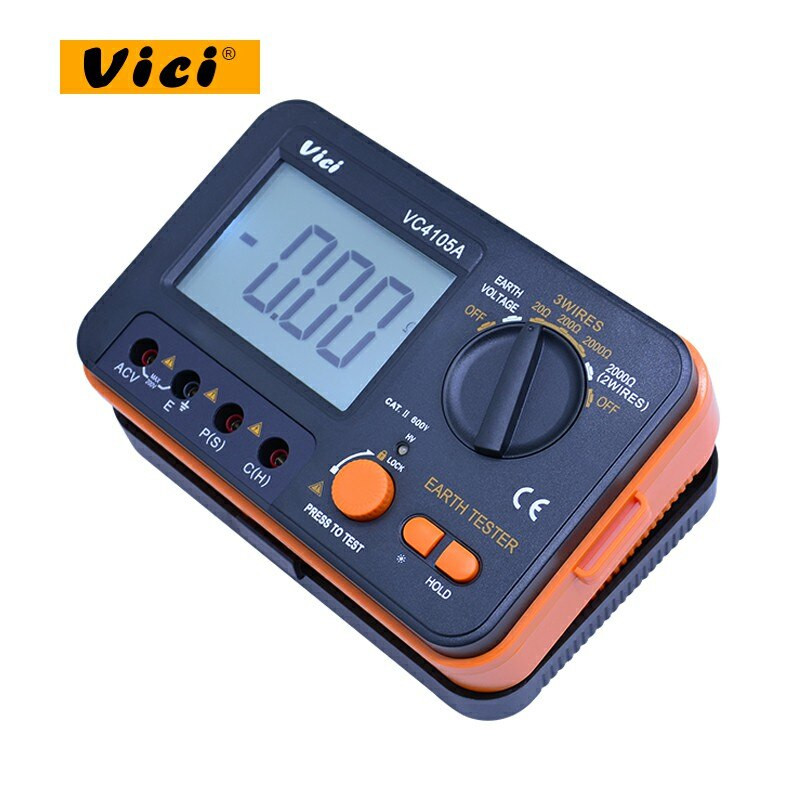

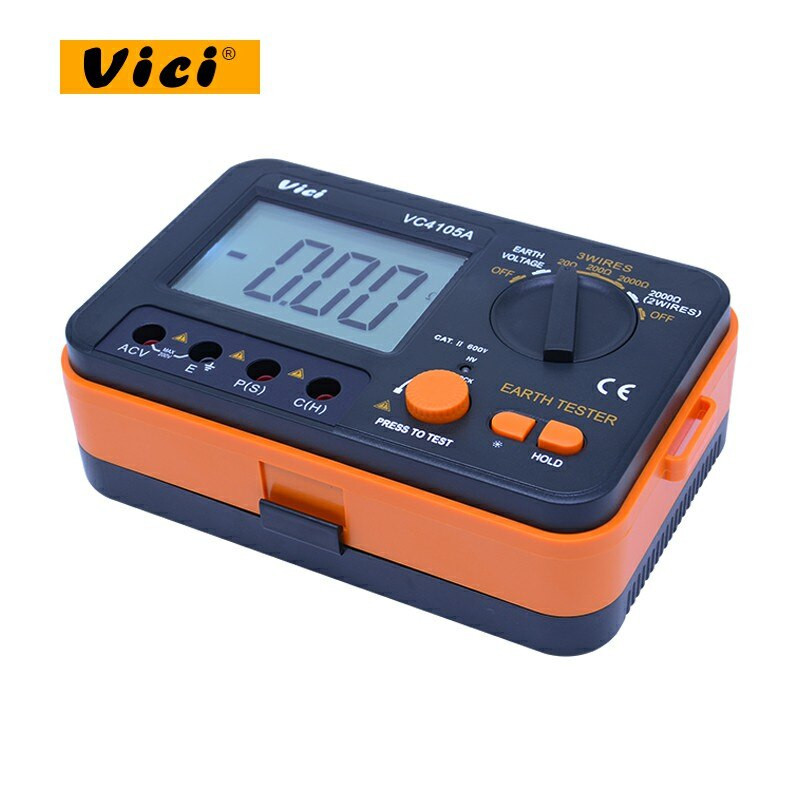

Vici 0-200V 0-2000ohm LCD Display Digital Earth Ground Resistance Tester Earth Voltage Ohm Megger meter VC4105A
Rs. 19200For Inquiry
Product Specification
- Earth Resistance: 3 Wires: 20/200/2000ohm; 2 Wires: 2000ohm
- 3 wires: 20ohm (2% RDG + 0.1ohm); 200ohm/2000ohm(2%RDG+3dgt)
- 2 wires: 2000ohm(2%RDG+5dgt)
- Earth voltage: 200V(1%RDG+5dgt)
- Working temperature: 0C40C; relative humidity <80%
- Storage temperature: -10C50C; relative humidity <85%
- Best temperature measurement: 23C5C; Relative humidity <75%
- Overload protection
- Operating frequency: 820 hz
- Operating Current: About 3mA
- Operation method: Manual
- maximum display range: 1999
- LCD size: 75*52mm
- Meter Weight: 800g (including battery
- Meter Size: 175×115×65mm
- Power source: 6x1.5 V AA battery (not included)
- Meter Color: Body: Dark Gray and Orange
- Package Size: 31*24*11.5cm/12.3*9.4*4in
- Package Weight: 2155g/4.8lb
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
HT015Warranty
NOEasy Return
Available, T&C ApplyDescription
- Earth resistance Range: 0-2000.
- Earth voltage range: 0-200V.
- LCD screen with 32mm image height
- Withstand voltage: 3700V AC between circuit and cover (for 1 minute)
- Overload protection: In Earth voltage range, Max voltage can be 450V AC (for 1 minute) In Earth resistance range, Voltage can be 280V AC for (10 second).
- TEST lock and data hold function.
- White LCD backlight.
