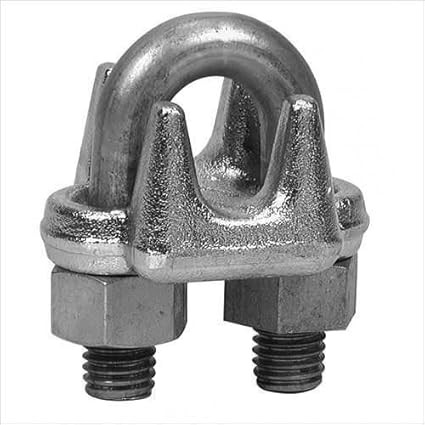

18mm Wire Rope Clamp heavy A type
Rs. 160For Inquiry
Product Specification
- Thread Diameter: Typically 15.5 mm to 16 mm (M16).
- Overall Height: Approximately 84 mm to 100.3 mm.
- Saddle Size: Approximately 61 mm (L) x 42 mm (W) x 34 mm (H).
- Centerline Spacing: Approximately 15 mm to 33.3 mm (between bolt legs).
- Tightening Torque: Recommended torque for a 18mm–20mm (3/4") heavy-duty clip is approximately 176 Nm (approx. 130 ft-lbs).
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
PT033Warranty
NOEasy Return
Available, T&C ApplyDescription
- Drop-Forged Bridge: The Heavy A Type features a drop-forged saddle with internal grooves, providing significantly higher strength and more consistent grip than lighter "741 Type" cast versions.
- High Efficiency Rating: When properly applied with the recommended number of clips (typically 4 clips for this size), it achieves an efficiency rating of 80% of the wire rope's breaking strength.
- Industrial Standard Compliance: These clips are designed to meet heavy-duty performance requirements such as FF-C-450 Type 1 Class 1 or EN 13411-5, making them suitable for critical rigging and load securing.
- Corrosion Protection: Usually finished with Hot Dip Galvanization or made from high-quality 304 or 316 Stainless Steel for resistance to rust, moisture, and harsh environments.
