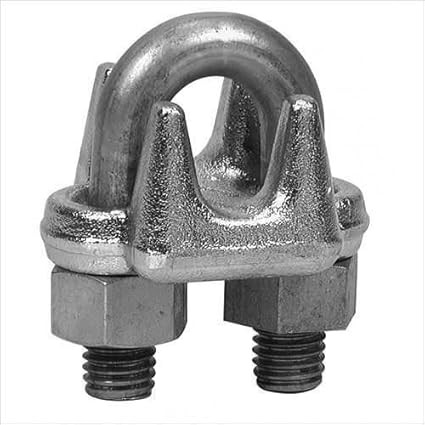

6mm Wire Rope Clamp heavy A type
Rs. 16For Inquiry
Product Specification
- Thread/Bolt Size: Often M6.
- Total Height (H1): Approximately 32 mm to 32.5 mm.
- Width (L): Approximately 18 mm.
- Center-to-Center Spacing: Roughly 11 mm.
- Torque Requirement: For a standard 6mm clamp, the recommended tightening torque is roughly 3.50 Nm.
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
PT033Warranty
NOEasy Return
Available, T&C ApplyDescription
- Forged Construction: Heavy A Types feature a drop-forged saddle (the base), which is stronger and more reliable for critical loads than the malleable cast iron used in "741 Type" clamps.
- Non-Slip Saddle: The saddle usually includes grooves or "teeth" that grip the rope strands more effectively to prevent slippage under tension.
- High Efficiency: When properly installed, these clamps can achieve approximately 80% of the wire rope's breaking strength.
- Versatile Material: Commonly available in Galvanized Steel for general use or AISI 316 Stainless Steel for marine/highly corrosive environments
