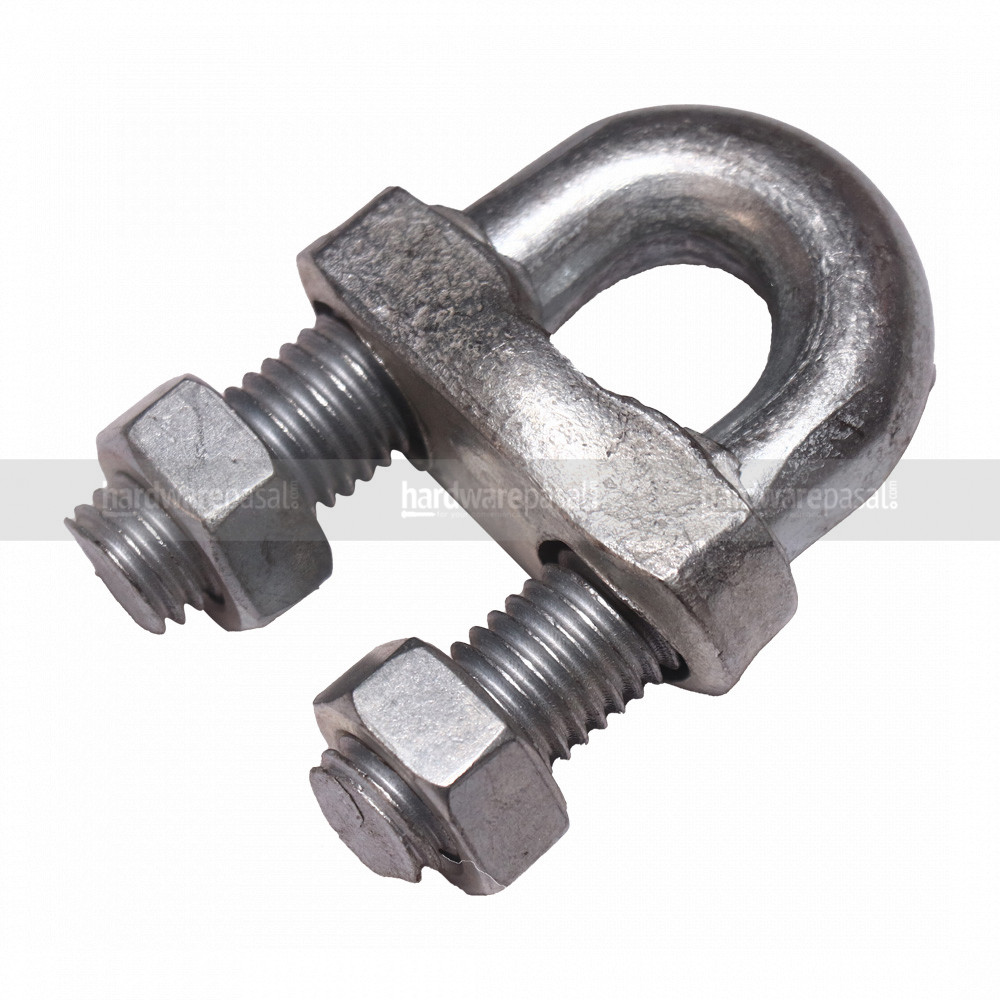

26mm Wire Rope Clamp 741 type
Rs. 220For Inquiry
Product Specification
- Thread Size: M16.
- Overall Height (h1): Approximately 98 mm to 105 mm.
- Inside Width (a): Approximately 28 mm.
- Saddle Length (l): Approximately 72 mm.
- Minimum Number of Clips: At least 5 clips are required for a secure termination.
- Spacing Between Clips: Minimum 156 mm (6 x rope diameter).
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
PT033Warranty
NOEasy Return
Available, T&C ApplyDescription
- Malleable Cast Iron: The saddle is made of cast iron, making it suitable for static tension but brittle under high-impact or shock loads.
- Standard Finish: Typically Electro-Galvanized (zinc-plated) for basic rust protection; also available in 316 Stainless Steel for marine or highly corrosive environments.
- Commercial Utility: Designed for non-load-bearing tasks like large-scale fencing, guard rails, and decorative architectural rigging.
- Non-Lifting Rated: Even at this large size, these clamps are strictly not for overhead lifting, towing, or critical safety applications.
