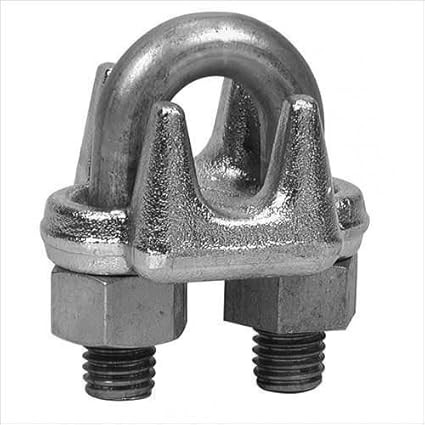

32mm Wire Rope Clamp heavy A type
Rs. 690For Inquiry
Product Specification
- Thread Diameter: Typically 27 mm to 30 mm.
- Overall Height: Approximately 175 mm to 190 mm.
- Saddle Size: Roughly 110 mm (L) x 72 mm (W) x 66 mm (H).
- Centerline Spacing: Usually between 64 mm and 70 mm.
- Tightening Torque: Recommended torque for a 32mm (1-1/4") forged clip is approximately 488 Nm (approx. 360 ft-lbs).
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
PT033Warranty
NOEasy Return
Available, T&C ApplyDescription
- Drop-Forged Bridge: The Heavy A Type features a drop-forged steel saddle, providing the maximum structural integrity required for 1-1/4 inch wire rope used in bridge cables, large crane rigging, and deep-sea mooring.
- Deep-Groove Grip: The saddle is precision-machined with extra-heavy internal grooves that lock into the thick rope strands, ensuring no slippage even under extreme tension.
- High Efficiency: When properly applied (typically requiring 7 clips for this size), they can achieve an efficiency rating of 80% of the wire rope's breaking strength.
- Hot Dip Galvanized: Finished with a thick layer of zinc to ensure the longest possible lifespan in highly corrosive or saltwater environments.
