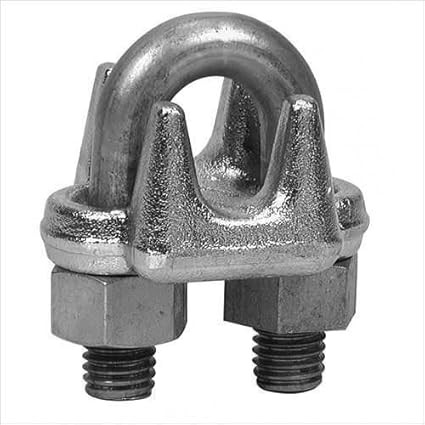

20mm Wire Rope Clamp 741 type
Rs. 145For Inquiry
Product Specification
- Thread Size: M14.
- Overall Height (h1): Approximately 82 mm.
- Inside Width (a): Approximately 22 mm.
- Saddle Length (l): Approximately 60 mm.
- Minimum Number of Clips: At least 4 to 5 clips are required.
- Spacing Between Clips: Minimum 120 mm (6 x rope diameter).
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
PT033Warranty
NOEasy Return
Available, T&C ApplyDescription
- Malleable Cast Iron: The saddle is cast, making it more brittle than forged steel. It is prone to cracking if over-tightened or subjected to shock loads.
- Electro-Galvanized Finish: Provides basic protection against rust; also available in AISI 316 Stainless Steel for better corrosion resistance in damp environments.
- Light-Duty Bridge: The saddle typically has a smoother, shallower interior than the Heavy A Type, offering a lighter grip.
- Static Use Only: Ideal for non-load-bearing applications such as garden trellises, decorative rigging, or light fencing. Never use for overhead lifting or critical safety loads.
