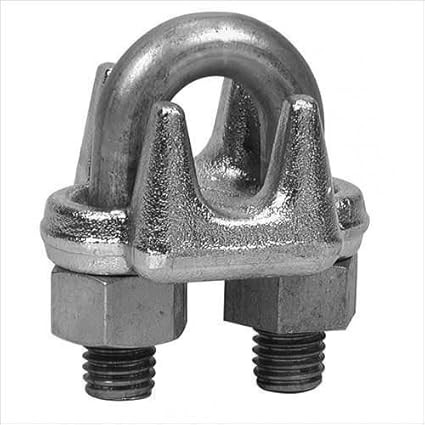

20mm Wire Rope Clamp heavy A type
Rs. 180For Inquiry
Product Specification
- Thread Diameter: Typically 16 mm.
- Overall Height: Approximately 95 mm to 105 mm.
- Saddle Size: Roughly 65 mm (L) x 44 mm (W) x 38 mm (H).
- Centerline Spacing: Usually between 34 mm and 38 mm.
- Tightening Torque: Recommended torque for a 20mm forged clip is approximately 176 Nm (approx. 130 ft-lbs).
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
PT033Warranty
NOEasy Return
Available, T&C ApplyDescription
- Drop-Forged Saddle: Unlike the light-duty "741 Type," the Heavy A Type features a drop-forged steel bridge. This provides the density and strength required for critical overhead or heavy-duty rigging.
- Precision Grooves: The interior of the saddle is deeply grooved to match the spiral of the wire rope strands, ensuring a non-slip grip that doesn't damage the wire's integrity when torqued correctly.
- High Efficiency: When installed correctly (typically requiring 4 to 5 clips for this size), they can achieve an efficiency rating of 80% of the wire rope's breaking strength.
- Heavy Galvanization: These are almost exclusively finished with Hot Dip Galvanization to provide long-term protection against rust in outdoor, industrial, or marine environments.
