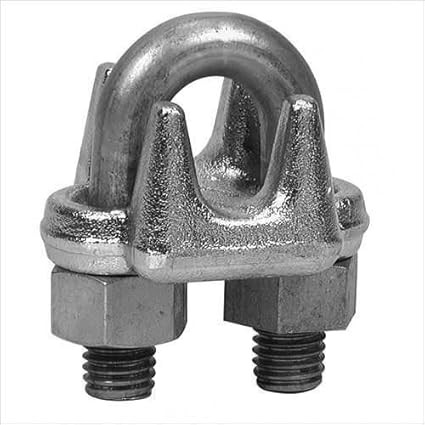

14mm Wire Rope Clamp 741 type
Rs. 75For Inquiry
Product Specification
- Thread Size: M10.
- Overall Height (h1): Approximately 58 mm.
- Inside Width (a): Approximately 15 mm to 16 mm.
- Saddle Length (l): Approximately 44 mm.
- Minimum Number of Clips: At least 4 clips are recommended.
- Spacing Between Clips: Minimum 84 mm (6 x rope diameter).
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
PT033Warranty
NOEasy Return
Available, T&C ApplyDescription
- Malleable Cast Iron: The saddle is made of cast iron, which is cost-effective for static applications but lacks the impact resistance of forged steel.
- Zinc Plated Finish: Provides standard protection against atmospheric corrosion; also commonly available in 304 or 316 Stainless Steel for marine environments.
- Commercial Grade: Designed for non-critical utility use. It is widely used for securing fencing, guard rails, and light-duty architectural rigging.
- Non-Lifting Rated: These clamps are not for overhead lifting, towing, or suspending critical safety loads.
