Hettich Intermat 9936 W90° T42 Crank 5° 77708
Rs. 2990 Rs. 2093 Save 30 %For Inquiry
Product Specification
- Opening angle: 95 °
- Min. door thickness : 14 mm
- Max. door thickness : 28 mm
- Cup version : TH 42
- Base : 5 mm
- Cup diameter : 35 mm
- Cup depth : 10.5 mm
- Type of installation : for screwing on
- Hinge surface finish: steel / die-cast zinc nickel plated
- Drilling pattern : TH 52 x 5,5 mm
- Diameter of mounting hole: Centre punch
- Predrilled hole 2.5 mm Ø max.
- Integrated overlay adjustment : +2 mm / -2 mm
- Integrated depth adjustment : +2 mm / -2 mm
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
GW007Warranty
NOEasy Return
Available, T&C ApplyDescription

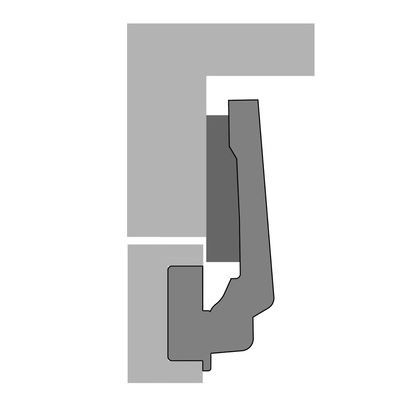

- Design : Corner cabinet 90° (W90)
- Door type: Standard door / wooden door
- Wood framed door (profile width from 50 mm)
- Aluminium framed door (profile width from 50 mm)
- User friendly features: without integrated silent system
- Door mounting option: inset
