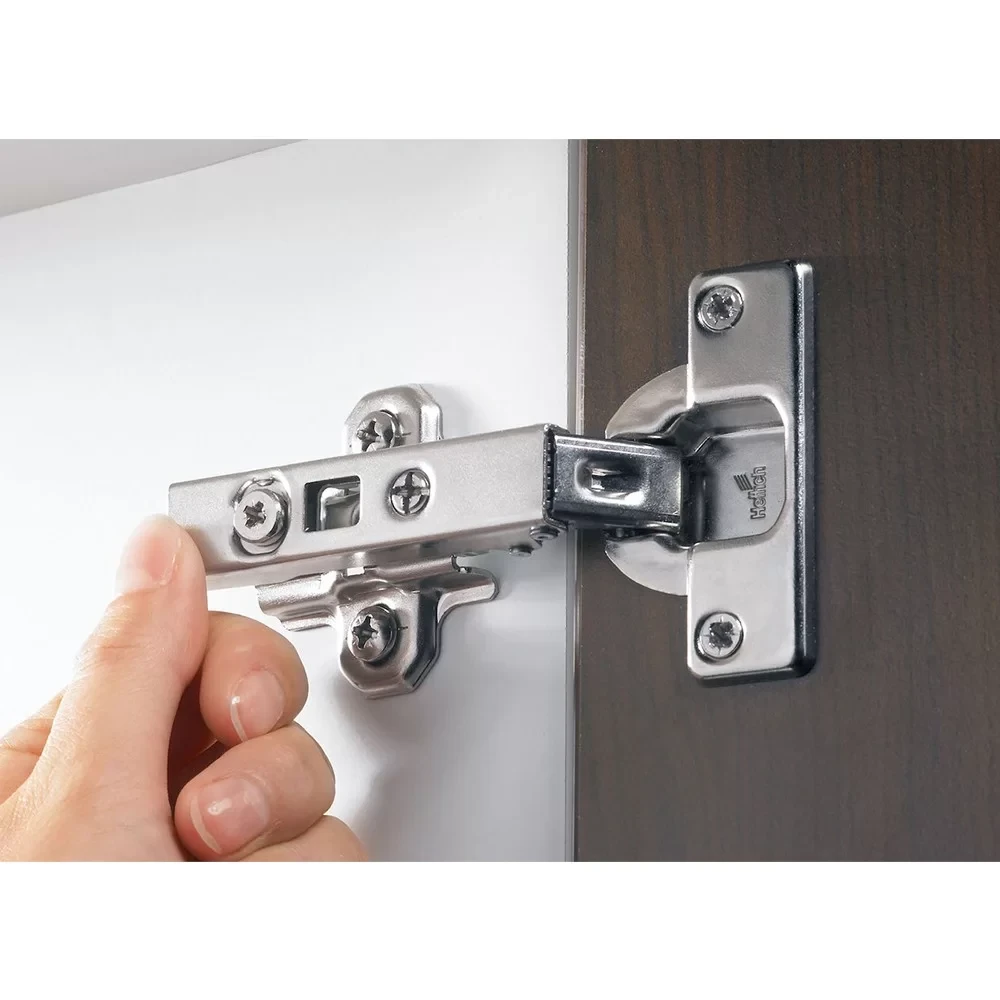

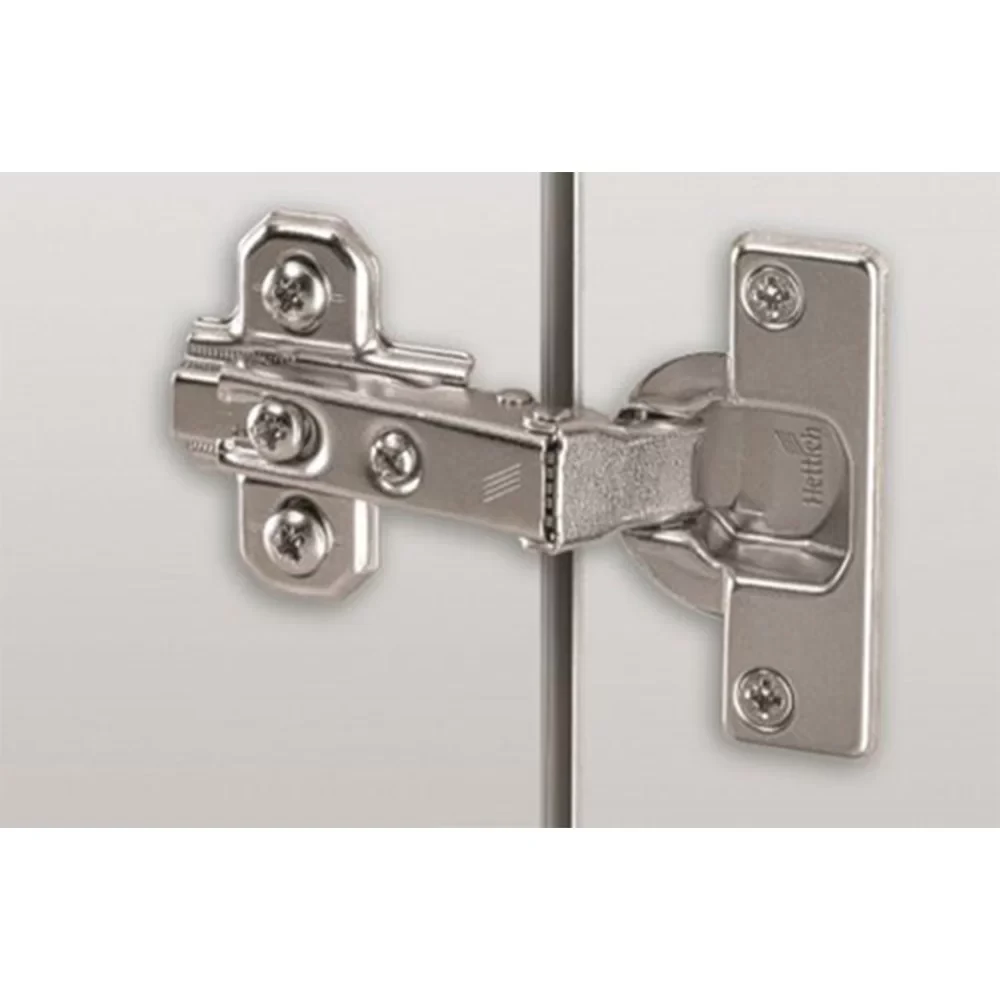

Hettich Slide-On 2333 T42 Crank 16° Hinge 1078662.s
Rs. 350For Inquiry
Product Specification
- Product Name: Concealed Hinge
- Code: 1078662
- Brand: Hettich
- Product Categories: Kichen fittings and accessories
- Product Type: Half Overlay Hinge Non Soft Closing Door
- Split box permitted: Yes
- Hinge material: Steel, nickel plated
- For door thickness: 14 – 25 mm
- Cup diameter: 35mm
- Opening Angle: 110 Degree
- Type of installation: for screwing on
- Base: -1.5
- Cup depth: 11.1 mm
- Cup version: TH 42
- Others: Integrated + 0.5 mm / – 2.5 mm overlay adjustment.
- Integrated depth adjustment: + 2 mm / – 2 mm.
- Height adjustment: With oblong holes
- Type of installation: for screwing on
- Distance: 1.5mm
- Hole spacing: 32mm
- Adjustment range: 2 mm / – 2 mm
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
GW007Warranty
NOEasy Return
Available, T&C ApplyDescription
- Inset Hinge Non Soft Closing.
- Opening Angle: 110 Degree.
- Life Cycle: 40000 Tested.
- Cross mounting plate with oblong hole height adjustment.
- Installation for screwing on.
- Adjustment range + 2 mm / – 2 mm
- Steel Nickel plated.
