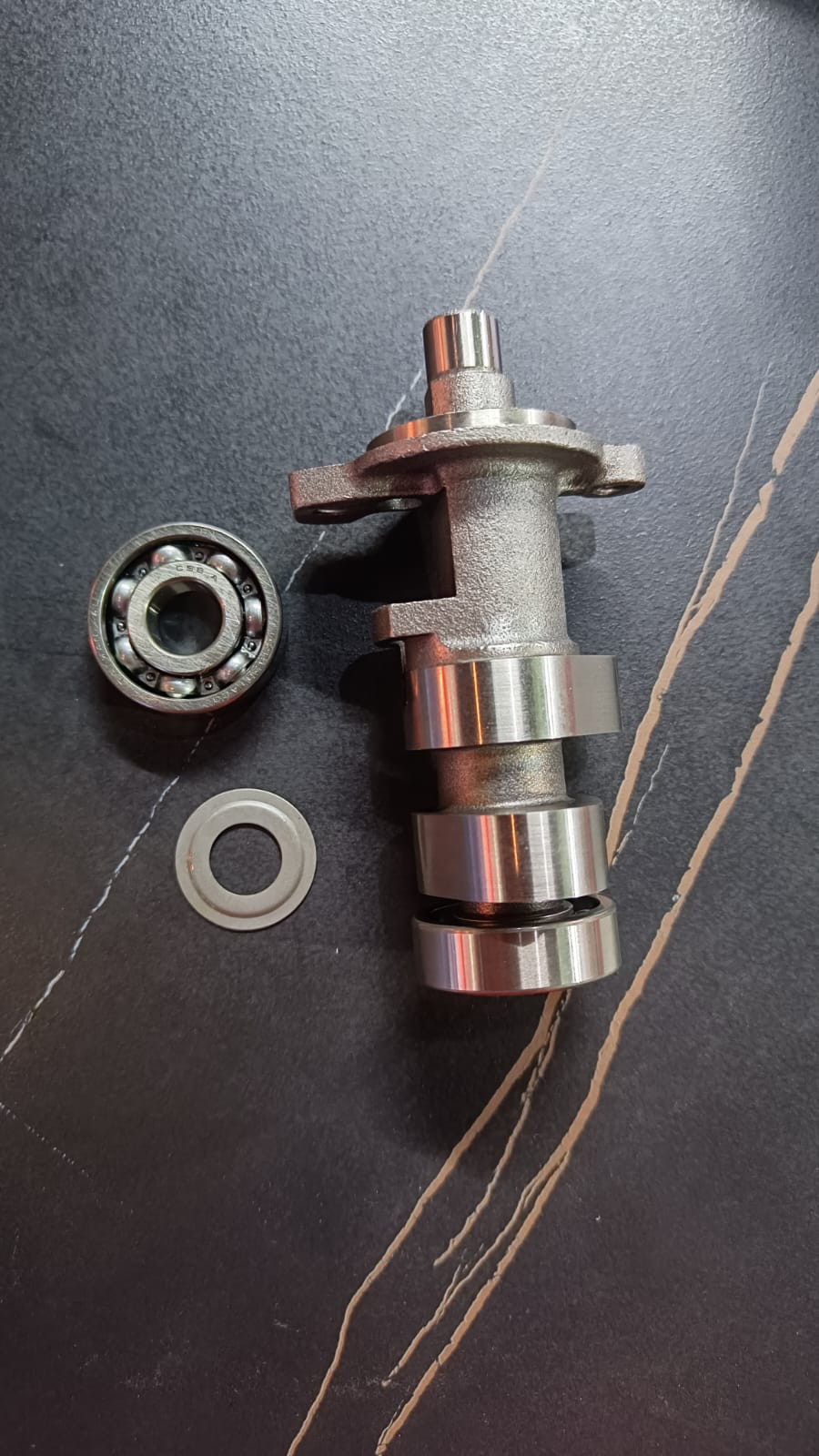

Motorcycle Engine Camshaft
Rs. 3000For Inquiry
Product Specification
- Physical Dimension: 102.5 mm length × 45 mm width × 32 mm height
- Engine Layout Type: Single Overhead Camshaft (SOHC)
- Compatible Bore × Stroke: φ77 mm × 53.6 mm (Standard 249.6cc displacement)
- Material Base: CNC-machined, induction-hardened high-density forged steel
- Bearing Configuration: Dual pre-installed deep-groove rolling ball bearing
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
Biker's PasalWarranty
NOEasy Return
Available, T&C ApplyDescription
- Integrated Centrifugal Decompression Slot: Features a precision-cut groove designed to house the automatic mechanical decompression pin assembly. It drops internal cylinder compression dynamically upon start-up cranking speeds to shield electric starter motors from current spikes and prevent kickback.
- Dual Direct-Press Cam Lobes: The egg-shaped lobe profiles are computer-ground to direct exact tolerances. They articulate the fork-style rocker arms cleanly, optimizing both intake duration and exhaust scavenging for broad low-to-mid range dirt bike power curves.
- Integrated Timing Sprocket Flange: Features a rigid mounting flange engineered with localized alignment pins and dual-bolt paths. This eliminates slip-play when mated to the main cam timing chain sprocket, ensuring absolute ignition timing synchronization with the crankshaft.
- Low-Inertia High-RPM Bearings: Dual integrated ball bearings remove rotational friction profiles from the inner valve-train assembly. This layout lowers oil temperature friction build-up under continuous high-RPM track stress.
