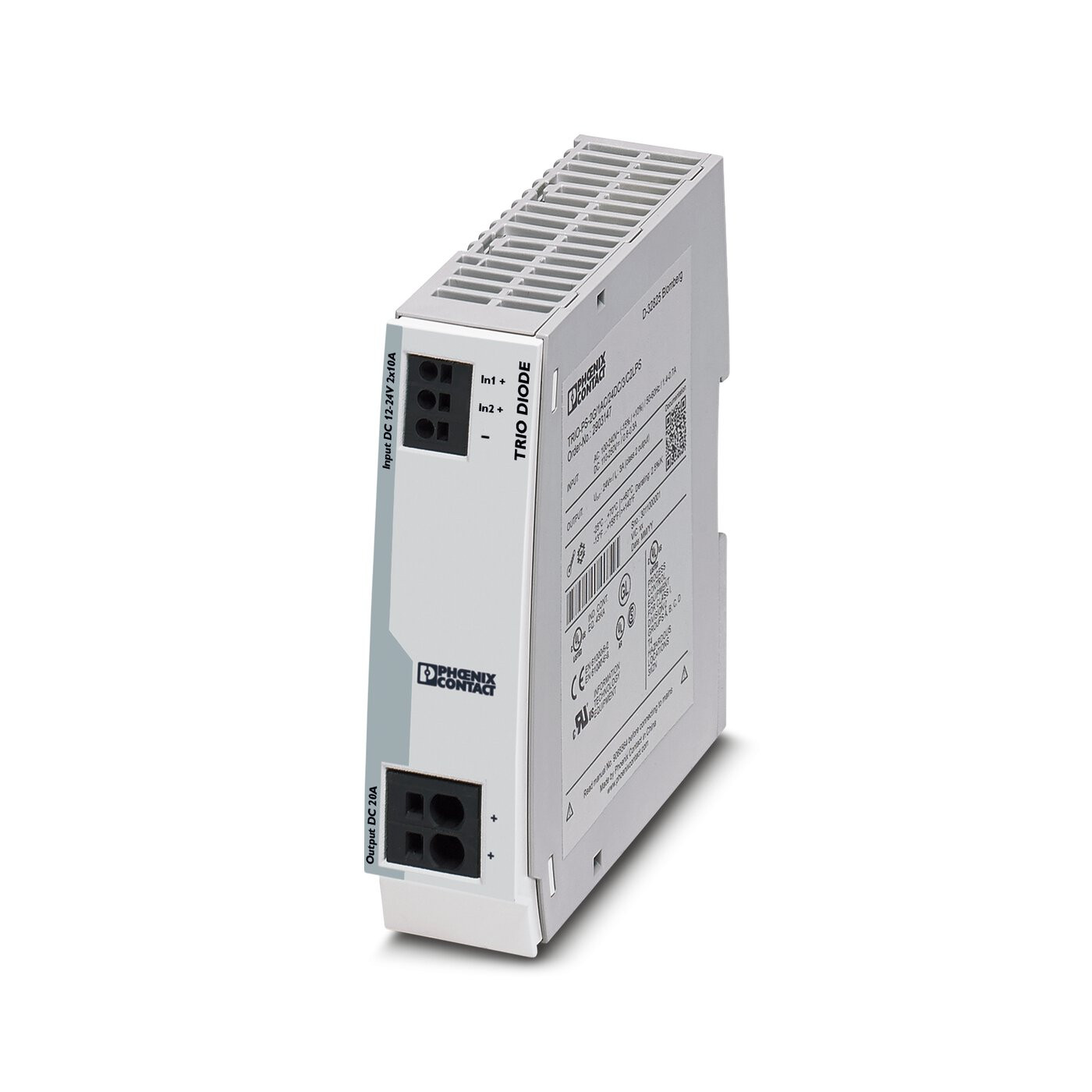

Phoenix Diode Redundancy Module for Governor TRIO2-DIODE/12-24DC/2X10/1X20 2907380
Rs. 20792 Rs. 12525 Save 40 %For Inquiry
Product Specification
- Input voltage range: 10 V DC ... 30 V DC
- Voltage type of supply voltage: DC
- Output voltage: UIn -
- Nominal output current (IN): 20 A, 10 A
- Insulation voltage input, output / housing: 500 V
- Product type: Redundancy module
- MTBF (IEC 61709, SN 29500): 66425178 h (25 °C), 56586762 h (40 °C), 41744164 h (60 °C)
- Width: 35 mm
- Height: 130 mm
- Depth: 115 mm
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
HT015Warranty
NOEasy Return
Available, T&C ApplyDescription

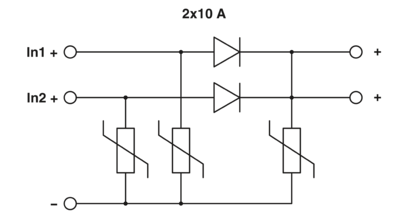

- A safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another.
- To further increase system availability, TRIO DIODE provides the solution: decoupling with diode.
