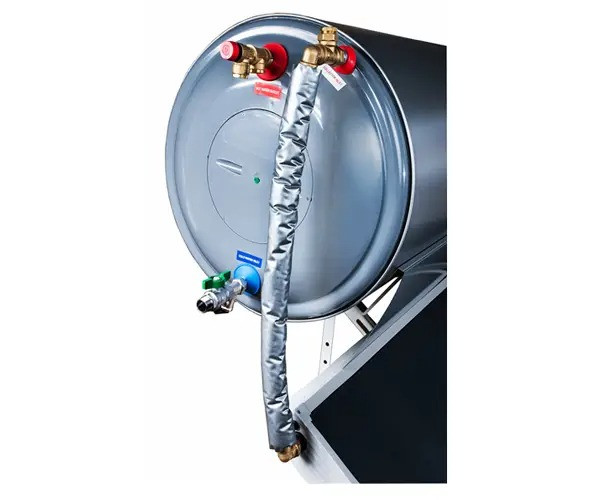

Solar Flame Thermosiphon Thermal Solar Water Heater – Closed Loop : 300 Ltrs 300MAX400
Rs. 225000For Inquiry
Product Specification
- Model No. : 300MAX400
- Closed Loop solar water heater : 300 Ltrs.
- Thermosiphon solar water heater with 2 colectors
- Pressurized System
- Closed Loop System, enameled, Closed Loop, 10 Bar
- 9006 external cover / 3Kw-220V / 2 Mg anode rods / with Port for Inlet and Otlet for Heat Pump
- 1980X1010X86mm alum. selective Absorber / Copper water frame 9xΦ8×0,4mm + 2xΦ22×0,7mm / Rock fiber 40mm / Low iron glass 3,2mm /Alum. Frame RAL9006 / 4 exits, support structure for flat roof installation
- accessories for support structure for flat roof installation/40°
- connections’ set for inox tubes/ 12Lt thermal fluid
- Ports for Heat Pumps Φ20
- Make : Solarflame MAX
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
PT029Warranty
NOEasy Return
Available, T&C ApplyDescription
- Large range of versions (49 systems), certified according to SOLAR KEYMARK.
- Compact system setup, for easy transport and installation.
- Customized design, for exclusive OEM versions.
- Glass-dual enameled (according to DIN4753, part 3) double walled (with large jacket heat exchanger) boilers, with optimized heat insulation and durable external cover for maximum protection in seaside areas.
- Superb efficiency rating collectors “Solar Flame FMAX” (η0,a=83% according to EN12975 Standard) series with:
- High selective PVD absorber coating, for fast and high temperature production.
- Water frame entirely made of copper.
- Tempered Hail-resistant solar low iron glass.
- Maximum heat transfer between the absorber sheet and the copper water frame, thanks to optimized laser welding technology.
- Incident angle modifier Kθ =0.96 at 50° ensures maximum radiation absorption throughout the day.
- High quality, recyclable materials ensure a long service life and high environmental compatibility.
- Support structures with high endurance and easy installation on flat or inclined tiled surfaces.
- Easy and safe installation due to special high quality and reliable accessories included in the connections’ kit.
