Tiger YT-28 Jack Hammer
Product Specification
- Length: ~661 mm (≈66 cm)
- Cylinder Diameter: ~80 mm
- Piston Stroke: ~60 mm
- Working Air Pressure: ~0.4–0.63 MPa (4–6.3 bar)
- Impact Frequency: ≥37 Hz
- Air Consumption: ≤81 L/s
- Drill Hole Diameter: 34 – 42 mm
- Max Drilling Depth: ~5 m
- Shank Size: 22 × 108 mm (hexagonal)
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
PT033Warranty
NOEasy Return
Available, T&C ApplyDescription

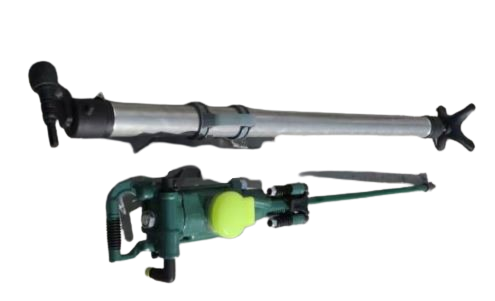

- Air‑leg compatible: Designed to work with air‑leg support stands (e.g., FT160 series) for stable drilling.
- Applications: Mining, tunneling, quarrying, construction, railway, water conservancy and other rock drilling work
- Operation: Combines air and water flushing for efficient hole cleaning and dust control when connected as a rock drill
- Built for: Medium‑hard to hard rock — horizontal, inclined, or vertical anchor drilling.
