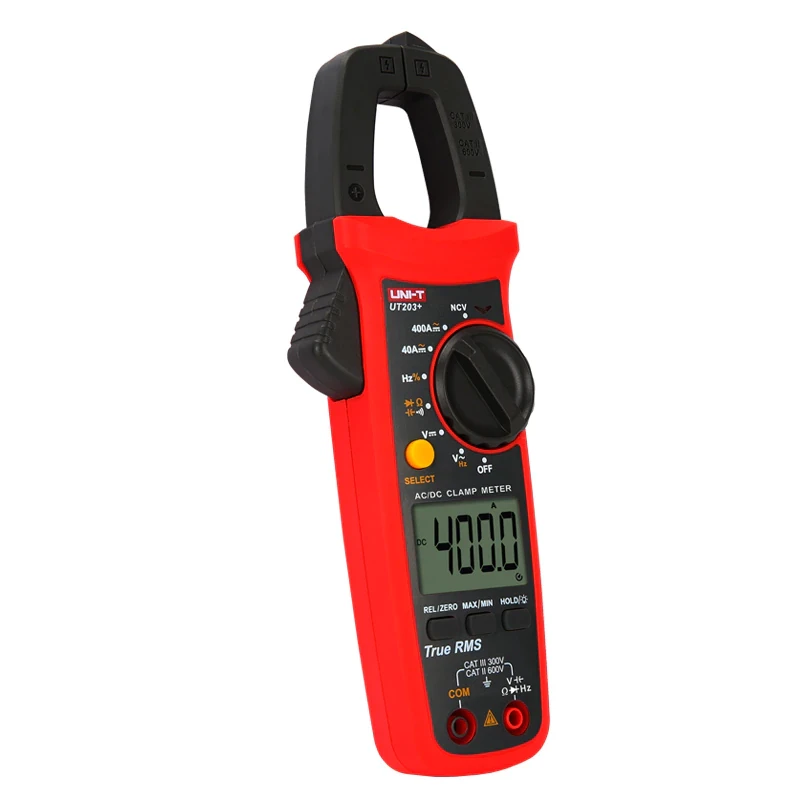

Uni-t AC/DC 600V Digital Camp Multimeter UT203+

Write a Review

Description

1. With large LCD display screen and fast ADC/ADC converter, the data display is clear and intuitive, and easy to observe.
2. Supports full-function error detection protection, with over-voltage, over-current alarm prompts, you can rest assured that use.
3. It supports true RMS and can accurately and real-time measure the RMS of various voltage waveforms.
4. The maximum voltage measurement is 600V, with high voltage frequency measurement function.
5. Supports AC current measurement function and capacitance measurement function (maximum 40mF), which is more convenient to use.
6. DC Current (A):
   40A/400A±(2%+5)
   60A/600A
7. AC Current (A)
   4A/40A/400A
   6A/60A/600A
   40A/400A±(2%+5)
   60A/600A
8. AC Current Frequency (Hz): 50Hz-100Hz
9. AC Voltage (V):
   4V/40V/400V/600V±?0.8%+5?
   6V/60V/600V
10. AC Voltage Frequency (Hz):
    10Hz-10kHz
    10Hz-60kHz ±?0.5%+2?
11. DC Voltage (V):
    400mV/4V/40V/400V/600V±?0.5%+2?
    600mV/6V/60V/600V
12. Temperature: -40?-1000?/-40?-1832?
13. Frequency (Hz): 10Hz - 10MHz±?0.1%+4?
14. On-Off Test Support
15. Diode Test Support
16. Maximum Value Minimum Value Support
17. Relative Value Support
18. Return to 0 Support
19. Data Retention Support
20. Automatic Shut-Down 15 minute
21. Support Package List:
    1 x Clamp Meter (Battery not included)
    1 x Pair of Test Leads
    1 x Instruction Manual
    1 x Black Storage Bag
