UNI-T Heavy Duty Thermal Camera UTi165A+
Product Not Available
Product Specification
- IR resolution (Pixels): 160×120IR resolution (Pixels): 160×120
- Display: 2.8” TFT LCD (320×240)
- Field of view(FOV): 56°×42°
- Thermal sensitivity(NETD): ≤50mk
- Spatial resolution(IFOV): 6.1mrad
- Frame rate: ≤9Hz
- Spectral range: 8~14µm
- Focus: Focus free
- Temperature measurement range : -10℃~400℃
- Accuracy: ±2℃ or ±2% whichever is greater
- Emissivity: 0.01~1.00 adjustable (0.95 default)
Functions
- Color palettes: 7(White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
- Image modes: Thermal,Visual image,Fusion
- On screen analyzer: 3 Points
- Digital camera resolution: 640×480
- Hi/Lo temperature alarm: Icon,LED flashlight
- PC software analysis: √
General Characteristics
- Battery: Fixed Li-ion battery (3.6V 5000mAh)
- Battery operation time: ≥ 7 hours
- USB: Type-C
- IP rating: IP65
- Drop proof: 2m
- Storage: Up to 32GB Micro SD card
- Image/Video storage format: BMP
- Product net weight: 490g
- Product size: 236mm×75.5mm×86mm
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
PT006Warranty
NOEasy Return
Available, T&C ApplyDescription

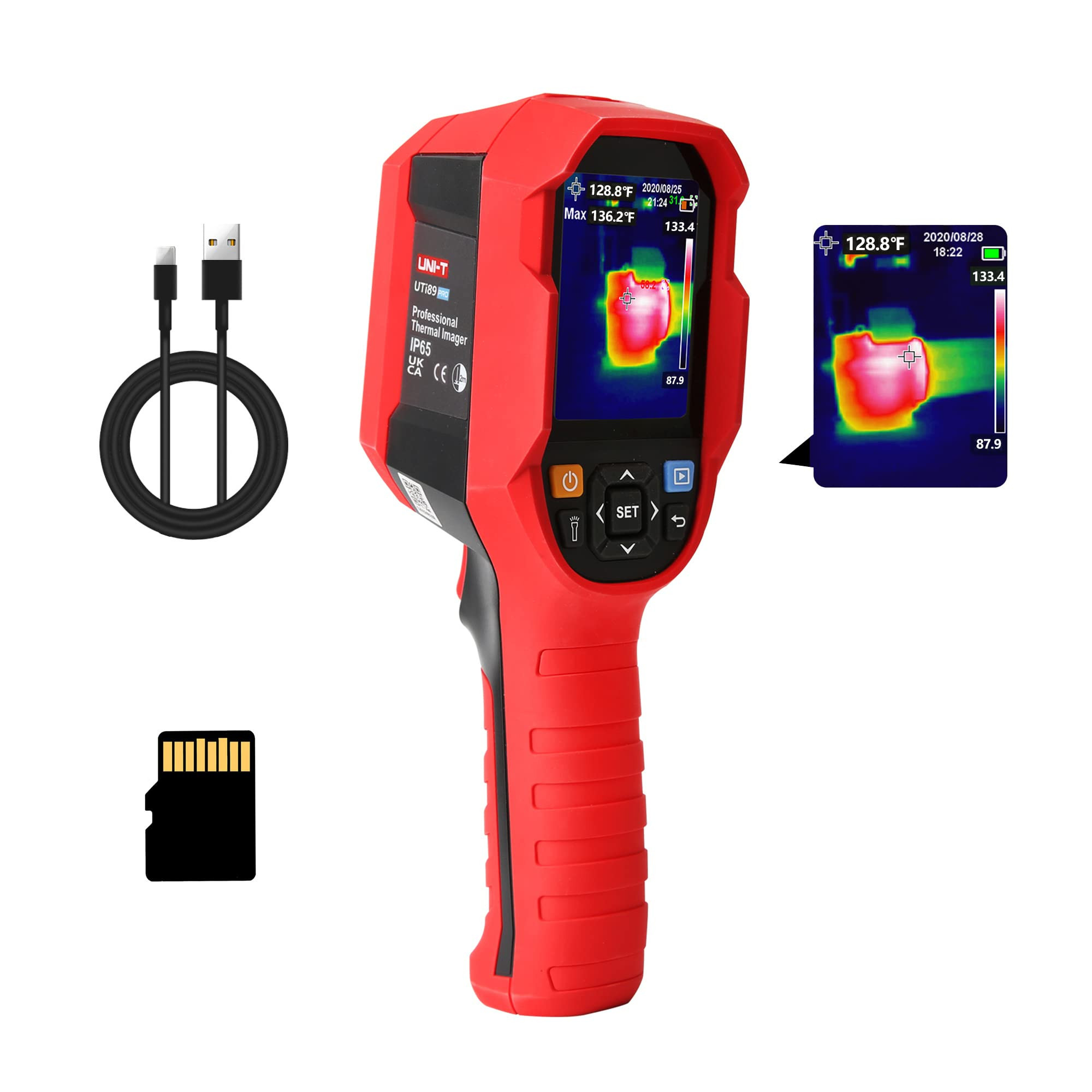

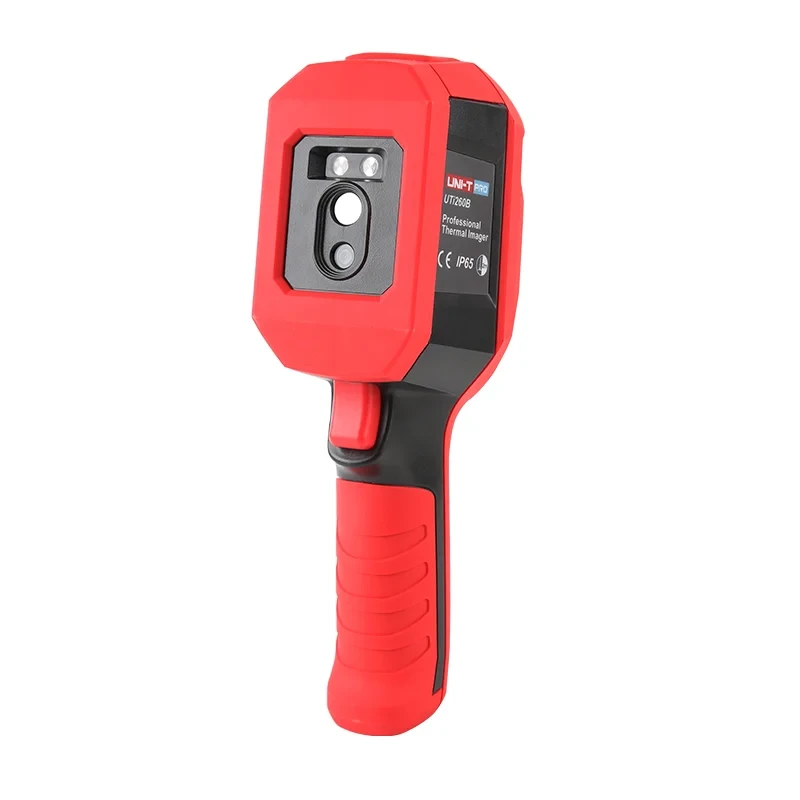

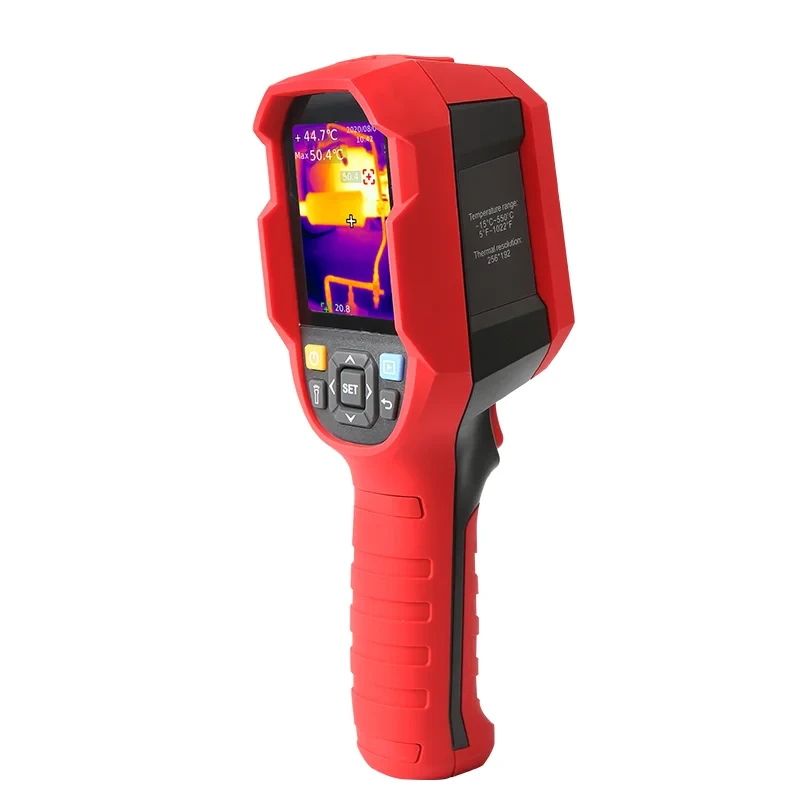

These series products are rugged, and ergonomically designed thermalimager with great performance. It adopts a UFPA detector to ensureexcellent infrared resolution and a rich variety of palette modes.Some models have the functions of visual light, buzzer alarm, andreal-time image transmission, which is convenient for various applications.
- 2.8" TFT screen
- Infrared resolution: 80 x 60 to 256 x 192
- Temperature measurement range: -15℃~550℃
- Photograph function with SD card storage
- PC analysis software
- Buzzer/flashlight alarm
- Real-time image transmission
- Auto capture of Hi/Low temperature
- Flashlight

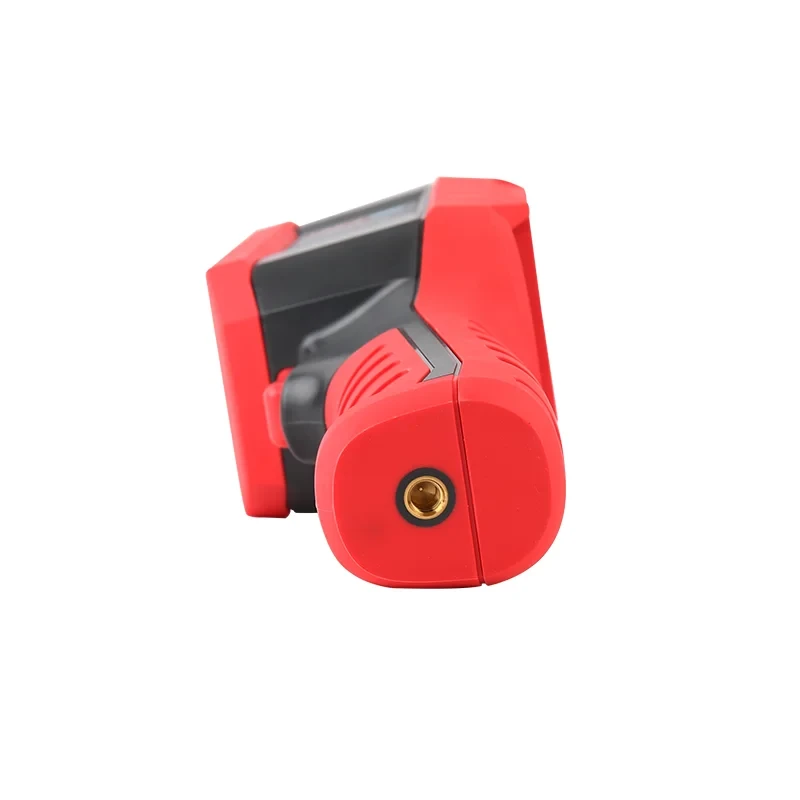

- 1/4" tripod mounting hole
- IP65/2m drop proof
