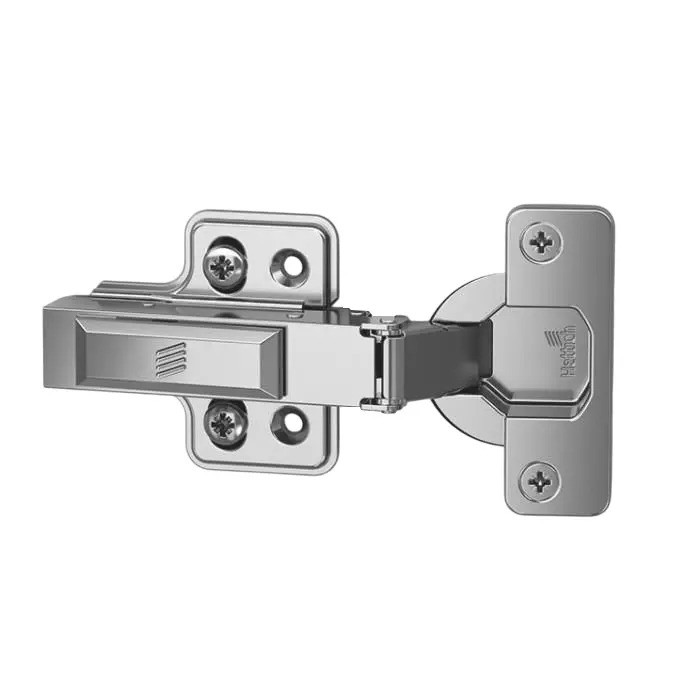

Veosys Hinge with Crank 16 Dergee 931543501
Rs. 2036For Inquiry
Product Specification
- Door thickness: 14–22 mm
- Cup diameter: 35 mm
- Cup depth: 11.5 mm
- Overlay adjustment: ±2.5 mm
- Depth adjustment: +2 mm / –1.5 mm
- Corrosion resistance: 120 h NSS (neutral salt spray test)
- Quality classification: EN 15570 Level 2
Delivery Options Available
- 1 -2 Days Normal Delivery
- 24hr Hours Express Delivery
Sold By
GW007Warranty
NOEasy Return
Available, T&C ApplyDescription
Incldue:
- Concealed clip-on hinge made of stainless steel (SS 304) for high-moisture and outdoor environments.
- Integrated soft-close mechanism for smooth, quiet door operation.
- 16° crank variant suitable for inset or special overlay doors.
Opening angle: 105°. - Durable and corrosion-resistant.
