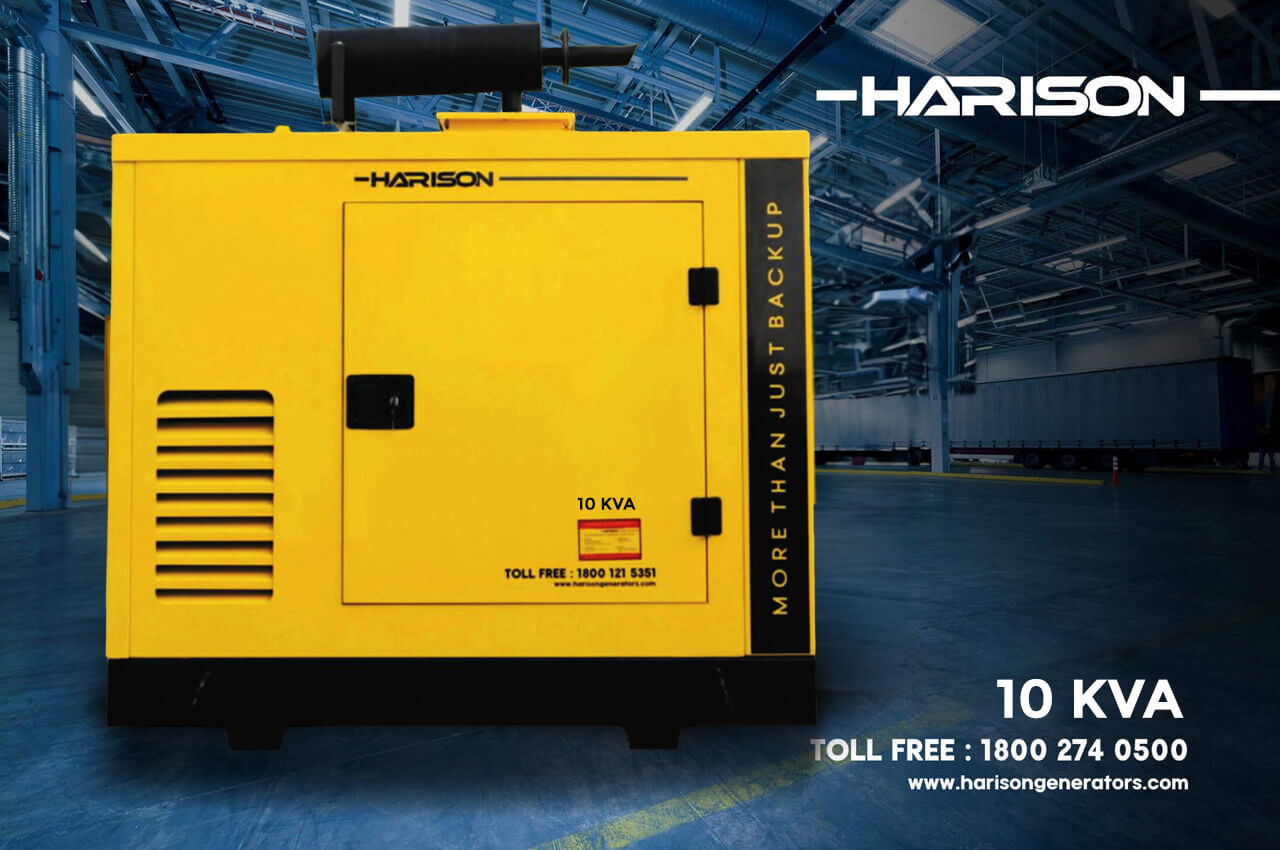

Harison 10KVA Generator HG1P2R2M
Product Not Available
For Inquiry
Product Specification
- PRIME POWER RATING (KVA): 10
- KW: 8
- PHASE: 1P/3P
- RATED CURRENT (A): 44/15
- GENSET MODEL: HG10KVA
- VOLTAGE: 230V(1P)/ 415V(3P)
- POWER FACTOR: 0.8
- FUEL CONSUMPTION @100%: 2.26 litres/hour
- FUEL CONSUMPTION @75%: 1.78 litres/hour
- FUEL CONSUMPTION @50%: 1.5 litres/hour
- BATTERY STARTING VOLTAGE: 12 VDC
- ENGINE SPECIFICATIONS: HARISON ENGINE
- ENGINE MODEL: HG1P2R2M
- CAPACITY OF ENGINE: 3168 cc
- RATED OUTPUT @100% LOAD: 29 BHP
- NUMBER OF CYLINDERS: 4
- NO. OF STROKES: 4
- BORE*STROKE: 98*105
- RATED SPEED: 1500
- TYPE OF ASPIRATION: Naturally Aspirated
- COOLING SYSTEM: Liquid Cooled
- COOLANT CAPACITY: 8 LITERS
- TYPE OF GOVERNER: Mechanical / Electronic
- BATTERY CAPACITY: 80 AH
- OVERLOAD CAPACITY: 10% Overloading is allowed after 10 Hours of continuous running
- OIL SUMP CAPACITY: 6.2 LITRES
ALTERNATOR SPECIFICATIONS
- MAKE: LEROY SOMER / MECCALTE / STAMFORD
- RATING: 10 KVA
- POWER FACTOR: 0.8
- TYPE: Brushless-IP 23 with AVR
- VOLTAGE, VOLTS: 230 V (1P) / 415 V (3P)
- RATED SPEED: 1500 rpm
- FREQUENCY, HZ: 50 Hz
- VOLTAGE REGULATIONS: VG 3
- CLASS OF INSULATION: H-Class
- CONTROL PANEL: With both Inbuilt ATS/AMF and Manual Options
- WAVE FORM DISTORTION/TOTAL HARMONIC DISTORTION: No Load<1.5% Non distortion Balanced
- Linear Load 5%
- TELEPHONIC HARMONIC FACTOR: <2%
ACOUSTIC SPECIFICATIONS
- NOISE LEVEL: <75DBA @1meter distance
- LENGTH: 1800
- WIDTH: 900
- HEIGHT: 1250
- FUEL TANK CAPACITY: 90 Liters
- APPROX NET WEIGHT: 690 KG
Delivery Options Available
- 2-3 Days Normal Delivery
- 24 Hours Express Delivery
Sold By
PT039Warranty
NOEasy Return
Available, T&C ApplyDescription
- Fuel Efficient– The generator is designed to comply with CPCB rules and regulations. The diesel engine makes the range of entire Gensets more economical as the fuel is easily available and great for heavy duty work.
- Low on vibration – Harison generator set makes the least vibration and its low noise level ensures stable operations. It has a canopy with a firm and solid design to withstand harsh environmental conditions.
- Aesthetics – It is available in different colors to support the demand of our customers and its immaculate design makes it more prominent and demanding in the market.
- Electrical Safety – The cable connections are doubly protected to reduce the probability of any accidental leakage by unintentional touch or water interference.
- Ease of Maintenance – Maintenance work can be performed on a day-to-day basis as the wide door allows getting in touch with the generator machine easily and do repair work if necessary.
